Configuring Design Variables

You can add, delete, or change design variables in your netlisting settings in SystemVerilog Netlister after choosing your design.

To set up a design variable:

1. Click Design Variables in the SystemVerilog Netlister window.

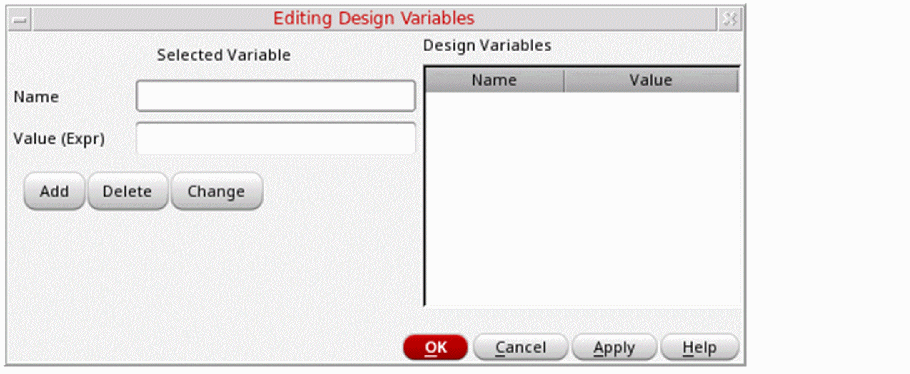

   The Editing Design Variables Form opens.


2. Specify a name for the design variable in the Name field.
3. Specify a value for the design variable in the Value (Expr) field.
4. Click Add to add a variable.
   The design variable appears in the Design Variables list on the right and is saved in the cds_globals.sv file.
5. Click Delete to delete a design variable by selecting the variable name from the Design Variables list box.
6. Click Change to change the name or value of a design variable by selecting the variable name from the Design Variables list box.
   Edit the name or the value of the design variable, as required.
7. Click OK.

The design variable is updated as specified.
