directionalSlotPattern

slt directionalSlotPattern string "list_of_points"

Description

Defines a slot pattern (for example, complex chamfered rectangles) by defining a list of points. When this environment variable is set, the pattern slots are inserted in the direction of the current. The string is a list of points, such as X1:Y1 X2:Y2 X3:Y3. The default value is an empty string "".

GUI Equivalent

Command	Window – Toolbar – Metal Density Options – Slotting Style
Field	Directional Pattern

Examples

envGetVal("slt" "directionalSlotPattern")

envSetVal("slt" "directionalSlotPattern" 'string "X1:Y1 X2:Y2 X3:Y3 X4:Y4 X5:Y5 X6:Y6 X7:Y7 X8:Y8")

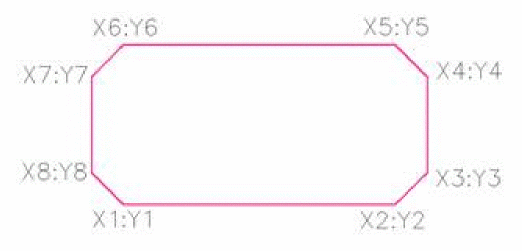

The above example defines the list of points for the following shape pattern.

Related Topics

Variables to Customize the Settings for Slotting

Managing Metal Density

Create Packaging Bus Form

lxShapeSlotting

lxConvertSlotToPolygon
