viaCheckDRC

layout viaCheckDRC boolean { t | nil }

Description

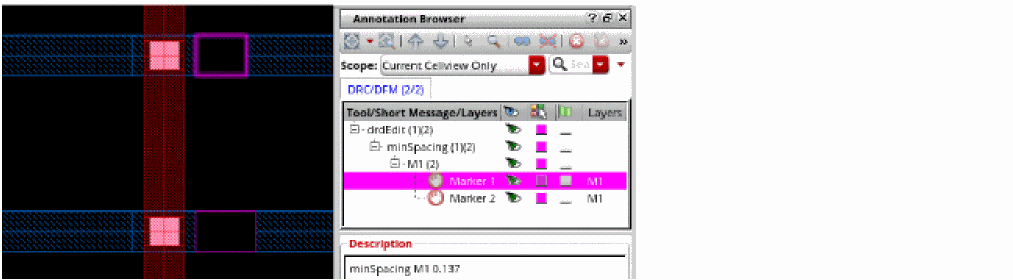

Creates DRC clean vias for routed wires with neighboring shapes. The default is nil. In this case, the different solutions to create vias are not considered and results in DRC violations.

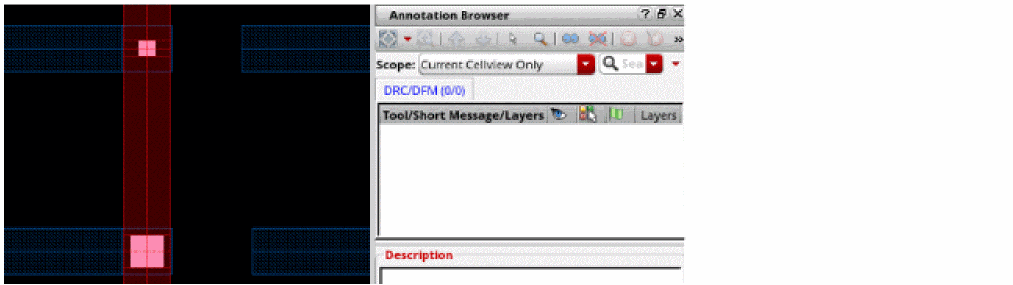

When the variable is set to t, the different solutions to create vias are considered and prevent DRC violations.

GUI Equivalent

Command	Routing assistant – Interactive – Wire tab
Field	DRC Check

Examples

envGetVal("layout" "viaCheckDRC")

envSetVal("layout" "viaCheckDRC" 'boolean t)
