weStrandedLadderAtTurn

layout weStrandedLadderAtTurn cyclic { "always" | "none" | "switchLayer" }

Description

Controls the creation of ladder at the bend when creating a stranded wire. The default is always.

This environment variable can take three values:

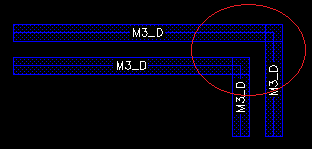

• always creates a ladder at the turn, as shown in the following figure.


• none does not create a ladder at the turn.


• switchLayer creates a ladder only when switching between layers.



GUI Equivalent

None

Examples

envGetVal("we" "weStrandedLadderAtTurn")

envSetVal("we" "weStrandedLadderAtTurn" 'cyclic "none")

envSetVal("we" "weStrandedLadderAtTurn" 'cyclic "switchLayer")
