weTrimInsertionOnPRBoundary

we weTrimInsertionOnPRBoundary cyclic { "none" | "inside" | "outside" | "straddled" }

Description

Insert trims at the PR Boundary even when there are no segments outside.

This environment variable can take four values:

• none no trims are inserted. This is the default.
• inside inserts the trims inside the PR Boundary.
• straddled inserts the trims straddled on the PR Boundary.
• outside inserts the trims outside the PR Boundary.

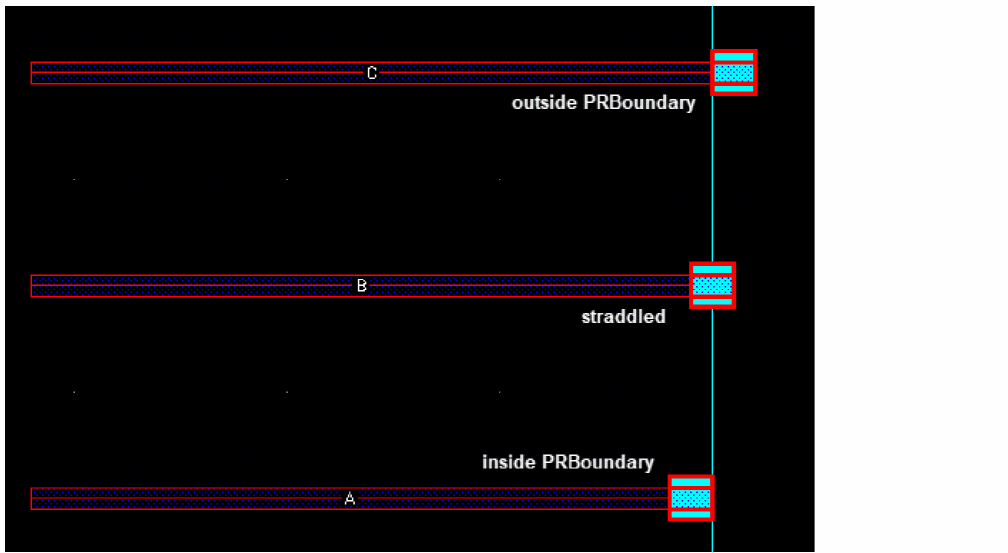

The following figure shows the trim insertions for various values of the environment variable.

GUI Equivalent

None

Examples

envGetVal("we" "weTrimInsertionOnPRBoundary")

envSetVal("we" "weTrimInsertionOnPRBoundary" 'cyclic "inside")

envSetVal("we" "weTrimInsertionOnPRBoundary" 'cyclic "straddled")

envSetVal("we" "weTrimInsertionOnPRBoundary" 'cyclic "outside")
