Spectre Unified Waveform Interface
The Spectre unified waveform interface (UWI) lets you write the Spectre probe data and read probe data into the Spectre simulator. The current application programming interface (API) supports writing the Spectre simulation data to user-defined formats. This document describes creating Spectre waveform outputs in user-defined formats.
The Spectre UWI is comprised of a set of functions that enables simulation data to be written in a variety of formats (see Figure 1-1).

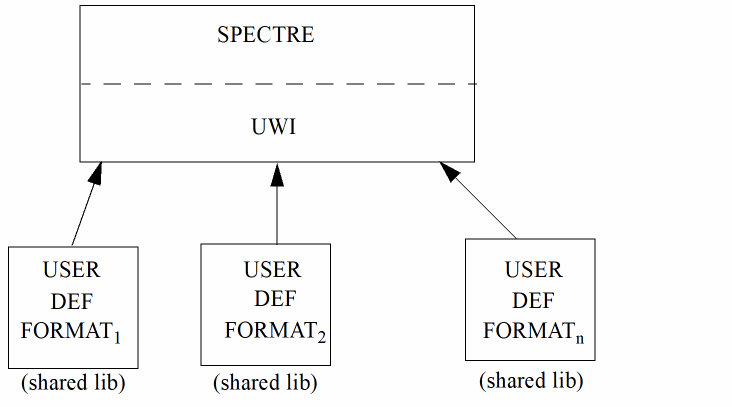

Figure 1-1 Spectre UWI Overview
You create source files (C-source files) containing the API function definitions for each output format specified in the netlist. You can specify more than one format in the netlist and, for each format, you should define the APIs in a separate .C source file. Dynamic libraries are created from these source files and are linked to the Spectre simulator during run time.
Spectre UWI Directory Structure
The Spectre UWI functions are linked to the Spectre simulator through dynamically shared libraries. The shared libraries contain user-provided definitions to the Spectre waveform API calls.
To minimize the effort required for creating these libraries, auto-build scripts and makefiles are included in the mmsim/ directory. Figure 1-2 shows the complete waveform interface directory structure.

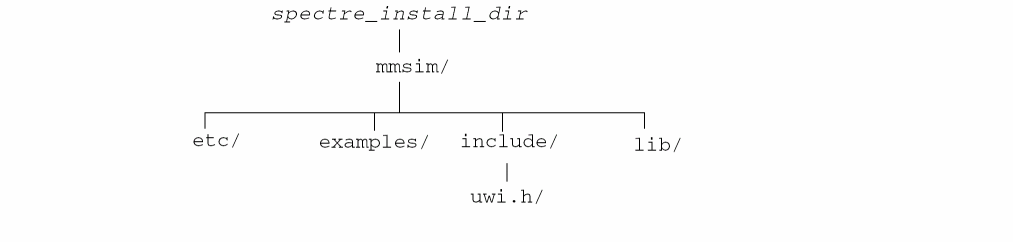

Figure 1-2 UWI Directory Structure
uwi_lib
opt options [ uwifmt =formatName] uwilib =libraryPath
If waveforms need to be generated in sst2 format, specify this information in the netlist along with the other formats.
opt options uwifmt = xydb
opt1 options uwilib = ./libXYDB.so
Generates all signals specified in the probe statements in xydb format. The shared library contains definitions of API functions to create the user-defined output format.
sst2 formats. Postprocessing occurs when the netlist contains .measure statements.Spectre UWI APIs
This section describes the Spectre UWI API syntax and functionality. The data structures mentioned in this section are specified in the uwi.h file.
uwi_WfIntDef
struct uwi_WfIntDef {
void *( *open )( const struct uwi_Setup *initData ); void *( *defineWf )( uwi_StreamHandle stream, const struct uwi_WfDefinition *wfDef );
int ( *endDefineWfs )( uwi_StreamHandle stream );
int ( *addDWfPoint )( uwi_StreamHandle stream, uwi_WfHandle wfHdl,
enum uwi_Logic value, double time );
int ( *addAWfPoint )( uwi_StreamHandle stream, uwi_WfHandle wfHdl,
double value, double time );
int ( *addAWfComplexPoint )( uwi_StreamHandle stream, uwi_WfHandle wfHdl, double vReal, double vImage, double time );
int ( *flush )( uwi_StreamHandle stream );
int ( *flushNow )( uwi_StreamHandle stream );
int ( *close )( uwi_StreamHandle stream );
char *( *getErrMsg )();
int ( *resetXCoord )( uwi_StreamHandle stream );
char *format;
int ( *addTapIntervalData ) ( uwi_StreamHandle stream, uwi_WfHandle tapHdl, int intervalIndex, double avgValue, double peakValue,
double rmsValue );
int ( *addStaticCapacitance ) ( uwi_StreamHandle stream, uwi_WfHandle tapHdl,
double tapCap, double devRes, double
devOutLoad );
int ( *limitFileReached ) ( uwi_StreamHandle stream, double maxFileSizeInBytes,
int currBufSizeInNumberOfPoints );
void ( *updateFileSize ) ( uwi_StreamHandle stream, int sizeUpdated );
void ( *defineAliasName ) ( uwi_StreamHandle stream, uwi_WfHandle wfHdl,
const struct uwi_WfDefinition *aliasWfDef );
void ( *setMaxFileSize ) ( double maxFileSizeInBytes );
};
Registers the public functions of a waveform library with the Spectre simulator. The function is called on each shared library after loading. The function returns a pointer to a uwi_WfIntDef structure containing pointers to the API functions. The user defines the functions and assigns them to the members of this structure.
The uwi_register function is required for every library. The Spectre simulator, in addition, has the following requirements on the function handlers returned. The functions open and defineWf are mandatory.
The format character string within the uwi_WfIntDef structure identifies the provided waveform format. This string needs to match the wf_format string in the netlist to activate the provided waveform output.
uwi_StreamHandle open( const uwi_Setup* initData )
This function is called whenever a new file stream in the user-defined output format needs to be opened. uwi_StreamHandle associates the waveforms with the format written.
typedef void* uwi_StreamHandle;
This function is called by the Spectre simulator with a uwi_Setup argument. The argument contains the description of the global simulation information valid for the current output being written.
uwi_Setup
struct uwi_Setup {
const char *fileName;
const char *fileNameExt;
enum uwi_AnalysisType analysis;
double temp;
int runNum;
int alterIter;
int ageIter;
double tRes;
double tStop;
const char *rawDir;
int isDouble;
const char *netName;
const char *amsWaveName;
int tapNumber;
double clockCycle;
int numCycles;
int numIntervals;
int avgMethod;
int peakMethod;
int rmsMethod;
int splitNum;
int nTotalHarm;
int iCurrentHarm;
int envPostProcess;
double tStart;
char *title;
unsigned int distrFileNum;
};
The information provided in the uwi_Setup structure is intended to provide a precise description of the overall simulation run associated with this stream. filename is the name of the SPICE netlist and the analysis field is defined as
enum uwi_AnalysisType {TRAN, DC, NOISE, AC}
alterIter, ageIter, temp, and tRes provide additional information in case of more complex simulation runs. In general, output systems can take advantage of this information beginning with better error checking and output filename creation up to more efficient data structures. tRes gives the time resolution of the x axis specified in the options. The default is 1ps.
You can replace filename in uwi_Setup with your own output file and then open that to dump the waveform or other information. If you open a file for writing and you want it to be used as the stream, that file handle must be returned by
uwi_WfHandle defineWf( uwi_StreamHandle stream, const uwi_WfDefinition* wfDef )
This function creates a handle for the given waveform definition in the given stream. The signal name, scope of the signal, units represented, and type of the signal are passed through by the uwi_WfDefinition structure. The function returns a pointer to uwi_WfHandle if successful. The waveform handle is subsequently used while calling the function to write the Spectre simulation data.
typedef void* uwi_WfHandle;
uwi_WfDefinition
struct uwi_WfDefinition {
const char *wfName; const char **scopeName; const char *units; enum uwi_WfType wfType;
};
uwi_WfDefinition is defined as a structure containing all signal-specific information. The instance of this structure is controlled by the Spectre simulator and is not guaranteed to exist during the call to the defineWf function.
The individual field descriptions are as follows:
-
wfNamerepresents the actual signal name -
scopeNameis a null-terminatedchar*array
Each entry in this array represents the part of the hierarchical path to this signal, starting with the top level. -
unitsidentifies the physical unit of this signal (either a V for voltage or A for current) -
uwi_WfTypeis anenumdefined asenum uwi_WfType {ANALOG,DIGITAL}
The type of a distinguishes between continuous time signals and discrete signal values.
int endDefineWfs( uwi_StreamHandle stream )
This function indicates the completion of definition of all waveforms to be added to the database. This optional function can be ignored by setting the function pointer in the uwi_WfIntDef structure to null.
int addDWfPoint( uwi_StreamHandle stream, uwi_WfHandle wfHandle, uwi_Logic val, double t )
This function sets the digital value of the waveform in a stream, pointed to by wfHandle. The x axis value is passed through the argument t (for DC, t is ignored). The digital value passed through the argument value is one of the enumerated types defined in uwi_Logic. If successful, the function returns 0.
enum uwi_Logic {IN, OUT, X, Z}
int addAWfPoint(uwi_StreamHandle stream, uwi_WfHandle wfHandle, double val, double t)
This function sets the analog value of a waveform in a stream pointed to by wfHandle for the time t. If successful, the function returns 0.
int flush(uwi_StreamHandle stream)
This function is called when the Spectre simulator requires the flushing of the waveform data corresponding to the uwi_StreamHandle. If successful, the function returns 0.
int close(uwi_StreamHandle stream)
This function closes the stream handle instance referred to by stream. This function is called once for each stream opened. The function returns 0 if successful. It is a good practice to close the open streams. That would avoid any conflict during output process.
int resetXCoord(uwi_StreamHandle stream)
This function resets the x coordinate of the database to time 0. All signals that are written after this function would start from time zero.
char* getErrMsg()
This function returns a textual description of the last error that occurred in one of the API functions. Depending on the importance of an error within the Spectre flow, the textual message might be printed to the output.
uwi.h header file are used internally by the Spectre simulator and can be ignored.Building a Shared Library
Assuming that SPECTRE_INSTALL is the root of the SPECTRE installation, the path to the uwi.h file is ${SPECTRE_INSTALL}/tools/mmsim/include/. When adding this path to the compile line using the -I option, you can add the path to the mmsim/include directory, rather the path to the plug-ins directory, as follows:
% gcc -fPIC -I${MMSIM_INSTALL}/tools/mmsim/include -o myplugin.o -c myplugin.c
No Cadence libraries need to be linked to the final plug-in DLL. To create the plug-in, all object files should be compiled with the appropriate PIC option and then linked together into the DLL.
The following example uses gcc to create the shared library.
% gcc -shared -o libmyXYDB_sh.so myuwi.o % cp libmyXYDB_sh.so ~/plugins/`cds_plat`
Spectre UWI Example
This example illustrates the use of these APIs to dump a waveform in a simple ASCII format.
/******************************************************************
This is a simple program to explain the UWI interface. The main
purpose of this code is to demonstrate the UWI interface through
a very simple example. This file is not recommended to be used as
a general format for all spice netlist. It has several limitations
and would fail for other spice netlist if used without modifying
the code
******************************************************************/
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include "uwi.h"
/*********************************************************************
This structure defines a stream in terms of a file pointer where data
will be stored. It also has arrays for data, digital time, analog time
and digital value to store waveform data
**********************************************************************/
#define MAX_SIG_COUNT 100000
#define MAX_DATA_COUNT 1000000
#define MAX_CHAR 1000
typedef struct wfInfo
{
int index;
double time;
double val;
double imag;
short isDigital:1;
short isComplex:1;
} sigData;
struct wfFormat
{
FILE* fp; /* Defines output stream */
char* sigName[MAX_SIG_COUNT]; /* Stores the name of the signals */
sigData signal[MAX_DATA_COUNT]; /* Stores signal name starting and index */
int sigCount; /* Stores the index of the signal Name */
int dataCount; /* Stores the number of data points to be flushed */
};
static struct wfFormat format; /* Creates static instance of struct to store */
/* waveform */
/* Function delclaration to convert and integer to corresponding string value */
/* {0, 1, x, z} */
char* getLogicStr(int val)
{
if(val == 0)
return "0";
else if(val ==1 )
return "1";
else if(val == 2)
return "x";
else if(val == 3)
return "z";
else
return "";
}
/* This defines the open function */
uwi_StreamHandle openSAF(const struct uwi_Setup* setup)
{
char name[MAX_CHAR];
int STR_LEN = MAX_CHAR - 10; /* Max length of the file name that would be *
* copied. Any name greater than that would be
* truncated */
/* Initialize the data-structure wfFormat */
format.fp = NULL;
format.sigCount = 0;
snprintf( name, STR_LEN, "%s/%s", setup->rawDir, setup->fileName );
/* create a unique file name depending upon the analysis type */
if(setup->analysis == UWI_DC)
strcat(name, "_DC.saf");
else if(setup->analysis == UWI_TRAN)
strcat(name, ".saf");
else if(setup->analysis == UWI_NOISE)
strcat(name, "_NOISE.saf");
else if(setup->analysis == UWI_AC)
strcat(name, "_AC.saf");
else if(setup->analysis == UWI_INFO)
strcat(name, "_INFO.saf");
else
// Not supported analysis
return NULL;
/* open the file */
format.fp = fopen(name, "w+");
/* Print the header information */
fprintf( format.fp,"\tSignal\t\tTime\t\tVal\n");
return format.fp;
}
/* Defining the waveform handle function */
uwi_WfHandle defineWfSAF(uwi_StreamHandle strHandle, const struct
uwi_WfDefinition* wfDef)
{
int index, sigSize = 0;
/* Allocate memory for the signal */
if( wfDef->wfName )
sigSize = strlen( wfDef->wfName );
int it;
if ( wfDef->scopeName && wfDef->scopeName[0] != 0 ) {
for (it = 0; wfDef->scopeName[it] != 0; ++it ) {
sigSize += 1 + strlen(wfDef->scopeName[it]);
}
}
if( sigSize && format.sigCount < MAX_SIG_COUNT )
format.sigName[format.sigCount] = (char *)malloc(sigSize+1);
else
return NULL;
/* Copy the signal name to the struct defined at the start of the program */
if ( wfDef->scopeName && wfDef->scopeName[0] != 0 ) {
format.sigName[format.sigCount][0] = '\0';
for (it = 0; wfDef->scopeName[it] != 0; ++it ) {
strcat(format.sigName[format.sigCount], wfDef->scopeName[it]);
strcat(format.sigName[format.sigCount], ".");
}
strcat(format.sigName[format.sigCount], wfDef->wfName);
} else
strcpy(format.sigName[format.sigCount], wfDef->wfName);
/* increment the index of the name array */
index = ++format.sigCount;
/* Return the index as Waveform Handle */
return (uwi_WfHandle)(size_t)index;
}
/* Define the flush function */
int flushSAF(uwi_StreamHandle stream)
{
int i;
sigData sig;
char* name;
for(i = 0; i< format.dataCount; ++i)
{
sig = format.signal[i];
name = format.sigName[sig.index-1];
if( sig.isDigital )
{
char* lStr = getLogicStr((int)sig.val);
fprintf((FILE*) stream, "\t%s \t%e \t%s\n",name, sig.time, lStr );
}
else if ( sig.isComplex )
fprintf((FILE*) stream, "\t%s \t%e \t%e \t%e\n", name, sig.time, sig.val, sig.imag );
else
fprintf((FILE*) stream, "\t%s \t%e \t%e\n", name, sig.time, sig.val);
}
/* Reset the counter */
format.dataCount = 0;
return 0;
}
/* Defines the close API */
int closeSAF(uwi_StreamHandle stream)
{
int i;
fclose((FILE*)stream);
for( i = 0 ; i < format.sigCount ; ++i )
free( format.sigName[i] );
return 0;
}
/* Defines the addDWfPoint API */
int addDWfPointSAF(uwi_StreamHandle stream, uwi_WfHandle wfHandle,
enum uwi_Logic val, double t)
{
/* Add the digital value and the corresponding time into the array of the *
* struct */
int index = (size_t)(wfHandle);
if( format.dataCount < MAX_DATA_COUNT )
{
format.signal[format.dataCount].time = t;
format.signal[format.dataCount].val = (double)val;
format.signal[format.dataCount].index = index;
format.signal[format.dataCount].isDigital = 1;
++format.dataCount;
}
else
printf("Exceeded the maximum data point that can be stored \n");
return 0;
}
/* Defines addAWfPoint API */
int addAWfPointSAF(uwi_StreamHandle stream, uwi_WfHandle wfHandle, double val,
double t)
{
int index = (size_t)(wfHandle);
if( format.dataCount < MAX_DATA_COUNT )
{
format.signal[format.dataCount].time = t;
format.signal[format.dataCount].val = val;
format.signal[format.dataCount].index = index;
format.signal[format.dataCount].isDigital = 0;
++format.dataCount;
}
else
printf("Exceeded the maximum data point that can be stored \n");
return 0;
}
/* Defines addAWfComplexPoint API */
int addAWfComplexPointSAF(uwi_StreamHandle stream, uwi_WfHandle wfHandle,
double vReal, double vImag, double freq)
{
int index = (size_t)(wfHandle);
if( format.dataCount < MAX_DATA_COUNT )
{
format.signal[format.dataCount].time = freq;
format.signal[format.dataCount].val = vReal;
format.signal[format.dataCount].imag = vImag;
format.signal[format.dataCount].index = index;
format.signal[format.dataCount].isDigital = 0;
format.signal[format.dataCount].isComplex = 1;
++format.dataCount;
}
else
printf("Exceeded the maximum data point that can be stored \n");
return 0;
}
/* Finally register all the functions defined above with uwi_register() API */
struct uwi_WfIntDef* uwi_register()
{
/* Defines a static struct of the waveform interface definition */
static struct uwi_WfIntDef wfIntDef;
/* Assigns all the user defined functions to the members of the waveform *
* interface object */
wfIntDef.open = openSAF;
wfIntDef.defineWf = defineWfSAF;
wfIntDef.addDWfPoint = addDWfPointSAF;
wfIntDef.addAWfPoint = addAWfPointSAF;
wfIntDef.addAWfComplexPoint = addAWfComplexPointSAF;
wfIntDef.flush = flushSAF;
wfIntDef.close = closeSAF;
wfIntDef.getErrMsg = NULL;
wfIntDef.resetXCoord = NULL;
/* the format is SAF the user needs specify the same format in the
* netlist */
wfIntDef.format = "SAF";
return &wfIntDef;
}
Return to top
