Marking or Unmarking Pcells for Abstraction

To mark or unmark Pcells for abstraction.

1. Choose Tools – Dynamic Abstract Generation for Pcells – Mark/Unmark Pcells for Abstraction.

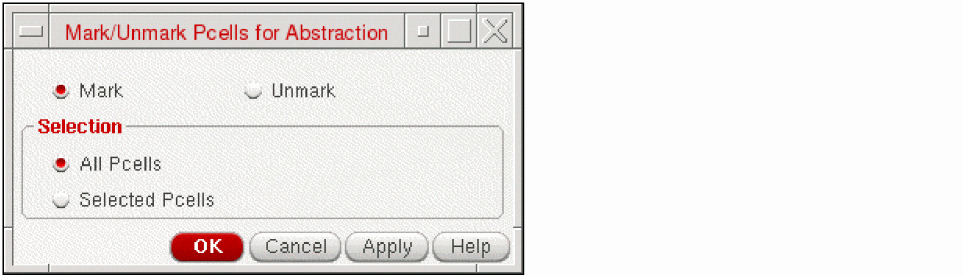

   The Mark/Unmark Pcells for Abstraction form is displayed.


   You can either mark or unmark the Pcells for abstraction.
2. Select Mark to mark a Pcell for abstraction. This is also the default option.
3. Select Unmark to unmark a Pcell.
4. Select All Pcells or Selected Pcells to specify if you want to unabstract all Pcells or the selected Pcells.

As a result, the Pcell is ignored for the abstraction process. By default, all the Pcells are marked for abstraction.
