Highlighting Unabstracted Pcells
To highlight the Pcells that are marked for abstraction but have not yet been abstracted:
- In the layout window, choose Tools – Dynamic Abstract Generation From Pcells – Highlight Unabstracted Pcells.

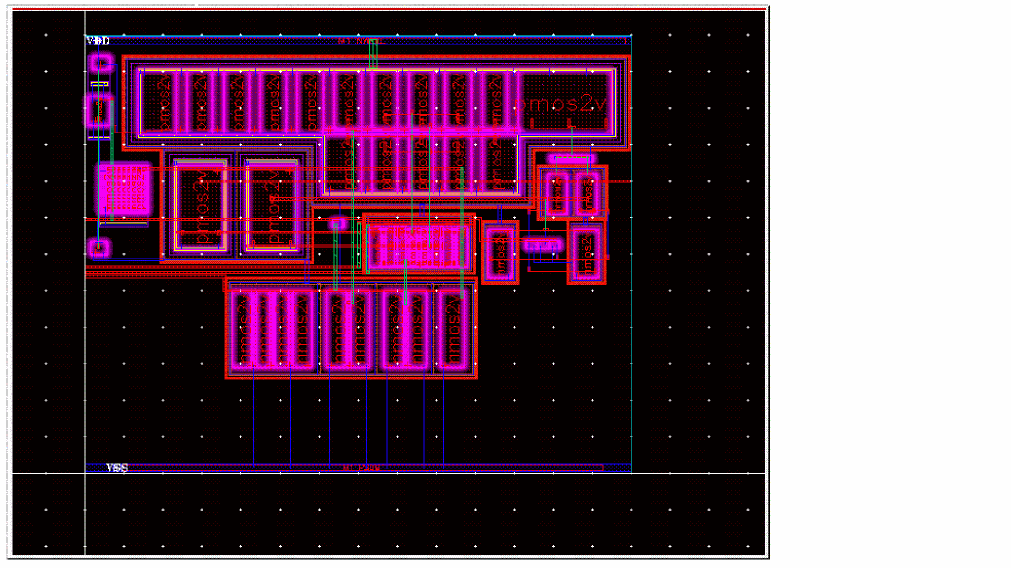

A highlight is displayed around each Pcell that has not been abstracted, as shown below.
If you click anywhere in the layout canvas, the highlights around the unabstracted Pcells are removed.
