Unabstracting Pcells

Unabstracting a Pcell involves deleting the abstract data that exists for a Pcell. If an abstract data that you created for a Pcell does not meet your requirements and you want to create the abstract data again based on a new set of abstraction options, you need to first unabstract a Pcell and then run Dynamic Abstract Generation again.

To unabstract a Pcell, in the Layout window,

1. Choose Tools – Dynamic Abstract Generation For Pcells – UnAbstract Pcells.

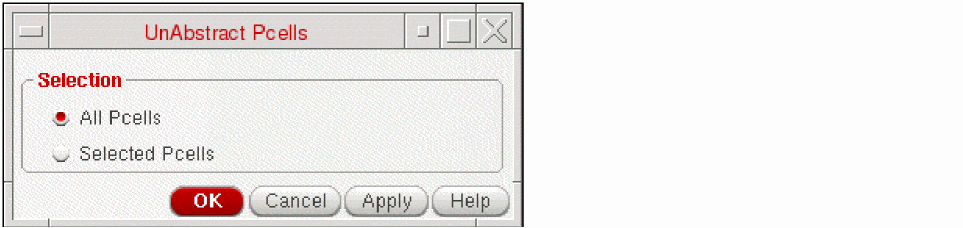

   The UnAbstract Pcells form is displayed.


2. Select All Pcells or Selected Pcells to specify if you want to unabstract all Pcells or the selected Pcells.
3. Click OK.
