Layout Canvas Using the Context-Sensitive Menu

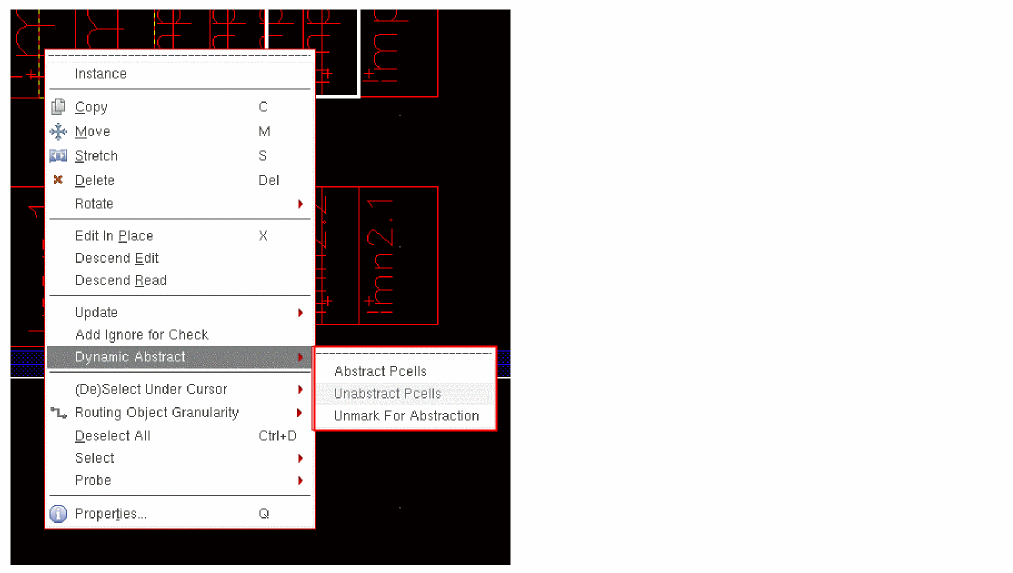

You need to select a Pcell in the layout canvas to view the context-sensitive menu. The Dynamic Abstract submenu that is available on the context-sensitive menu contains commands that can be used for Dynamic Abstract Generation. Right-click a selected Pcell to view this menu, as shown below.

Selecting the Abstract Pcells command from the context-sensitive menu does not display the Abstract Pcells form. The abstract is created automatically based on the abstraction rules specified in the default options file, namely, .dynamicAbstract.options.
