Pin Names

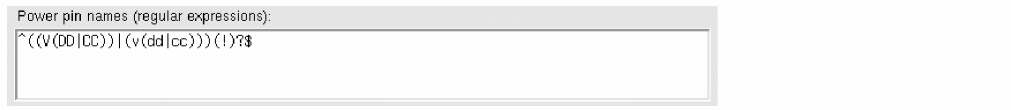

You can specify the pin names in the Power pin names, Ground pin names, Clock pin names, Analog pin names, and Output pin names fields of the Running step Pins form. Abstract Generator identifies the respective pin names based on the label strings in the abstract. You can specify a list of possible names for the pins in the form of regular expressions, each separated by a space, as shown in the figure below.

By default, the Clock pin names, Analog pin names, and Output pin names fields are empty.

When Abstract Generator encounters a label that matches one of the regular expressions, it sets properties as given in the table below. In addition, Abstract Generator adds attributes for the pin in question to the LEF definition.

Pin	Terminal Direction	Terminal Type	Attribute Added for LEF PIN in the LEF File
Power pin	inputOutput	power	USE POWER
Ground pin	inputOutput	ground	USE GROUND
Clock pin	input	clock	USE CLOCK
Analog pin	input	analog	USE ANALOG
Output pin	output	signal	USE OUTPUT

If there is a logical view present for the cell being processed, Abstract Generator checks whether a given terminal has a matching terminal in the logical view. If it does, the terminal direction is adopted from the terminal in the logical view. Otherwise, Abstract Generator uses the value specified in the Output pin names field to determine the output pins.
