B

hspiceD Components

This section lists all the Analog Library components that are primarily supported by hspiceD.

Active Components

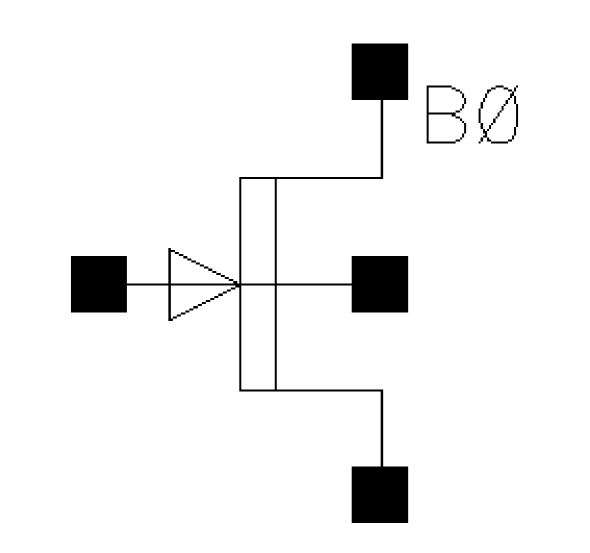

Symbol: nmes4

N-type MES FET Transistor with 4 Terminals

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Device area	`area`	-	-	-	x	-
Device initially off	`off`	-	-	-	x	-
Drain source initial voltage	`Vds`	-	-	-	x	-
Gate source initial voltage	`Vgs`	-	-	-	x	-
Bulk source initial voltage	`Vbs`	-	-	-	x	-
Width	`w`	-	-	-	x	-
Length	`l`	-	-	-	x	-
Model name	`model`	-	-	-	x	-
Multiplier	`m`	-	-	-	x	-
Temperature difference	`dtemp`	-	-	-	x	-

Passive Components

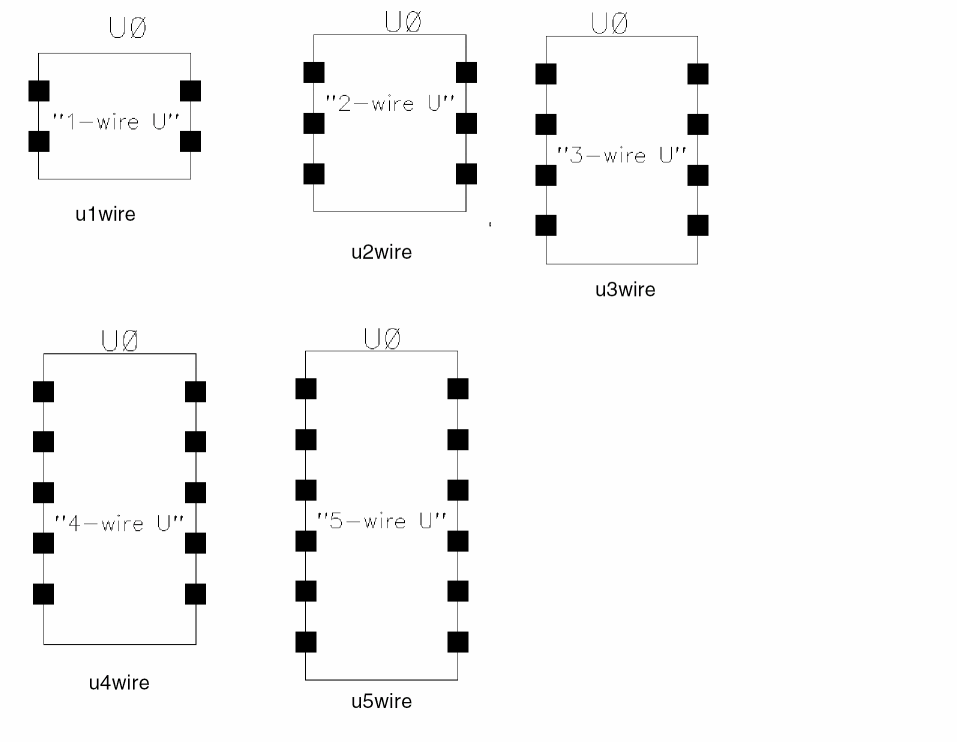

Symbol: uxwire

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Model name	`model`	-	-	-	x	-
Length	`l`	-	-	-	x	-
# of lumps in element	`lumps`	-	-	-	x	-

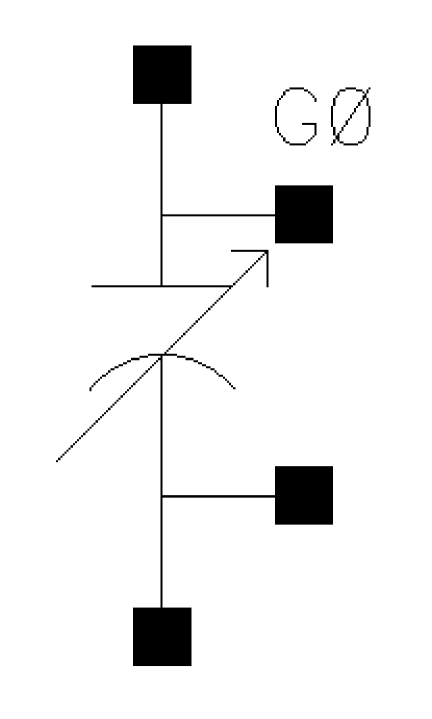

Symbol: vccap

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Scale factor	`scale`	x	-	-	x	-
Multiplier	`hm`	x	-	-	x	-
Temperature coefficient 1	`tc1`	x	-	-	x	-
Temperature coefficient 2	`tc2`	x	-	-	x	-
Initial condition	`hic`	x	-	-	x	-
Delta	`delta`	x	-	-	x	-
Type	`csType`	x	-	-	x	-
Number of controlling pairs	`xypairs`	x	-	-	x	-
Controlling Volt 1	`x1 - x20`	x	-	-	x	-
Corresp Element 1	`y1 -y20`	x	-	-	x	-

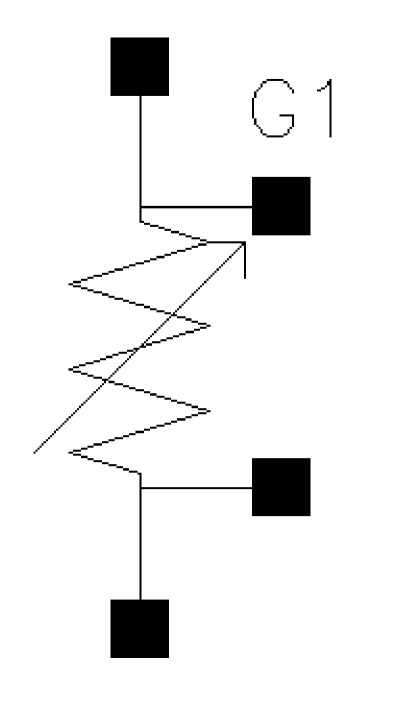

Symbol: vcres

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Type	`csType`	x	-	-	x	x
Volt/res conversion factor	`transfactor`	x	-	-	x	x
Maximum output resistance	`maxr`	x	-	-	x	-
Minimum output resistance	`minr`	x	-	-	x	-
Scale factor	`scale`	x	-	-	x	x
Multiplier	`hm`	x	-	-	x	-
Temperature coefficient 1	`tc1`	x	-	-	x	x
Temperature coefficient 2	`tc2`	x	-	-	x	x
Initial condition	`hic`	x	-	-	x	-

Sources - Dependent Components

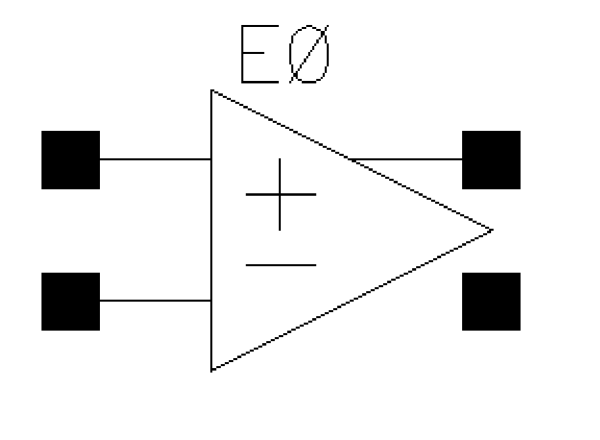

Symbol: iopamp

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Scale factor	`scale`	-	-	-	x	-
Multiplier	`hm`	-	-	-	x	-
Temperature coefficient 1	`tc1`	-	-	-	x	-
Temperature coefficient 2	`tc2`	-	-	-	x	-
Initial condition	`hic`	-	-	-	x	-
Delta	`delta`	-	-	-	x	-
Type	`csType`	-	-	-	x	-
Number of controlling pairs	`xypairs`	-	-	-	x	-
Controlling Volt 1	`x1 - x20`	-	-	-	x	-
Corresp Element 1	`y1 -y20`	-	-	-	x	-

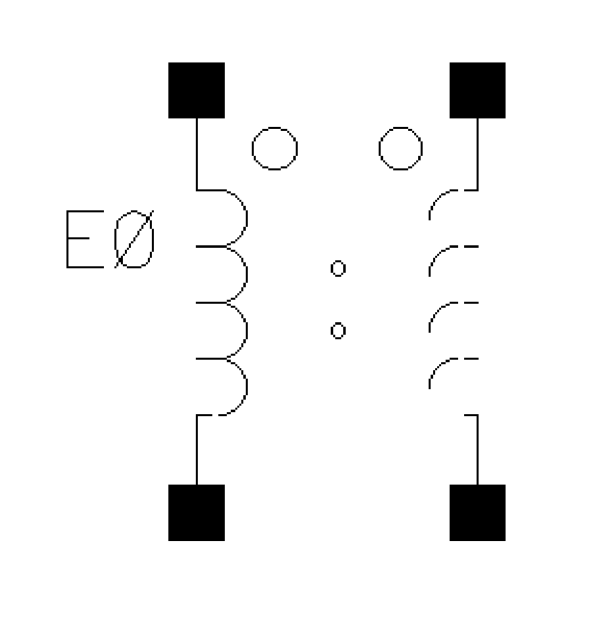

Symbol: ixfmr

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Coupling coefficient	`k`	-	-	-	x	-

Sources - Independent Components

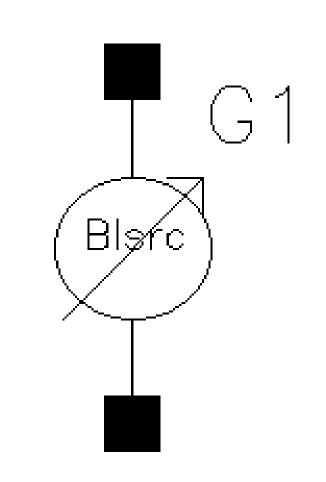

Symbol: bcs

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Current eqn	`cur`	-	-	-	x	-
Min	`min`	-	-	-	x	-
Max	`max`	-	-	-	x	-
Scale factor	`scale`	-	-	-	x	-
Multiplier	`hm`	-	-	-	x	-

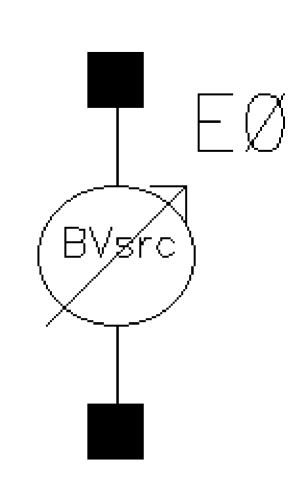

Symbol: bvs

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Voltage eqn	`vol`	-	-	-	x	-
Min	`min`	-	-	-	x	-
Max	`max`	-	-	-	x	-

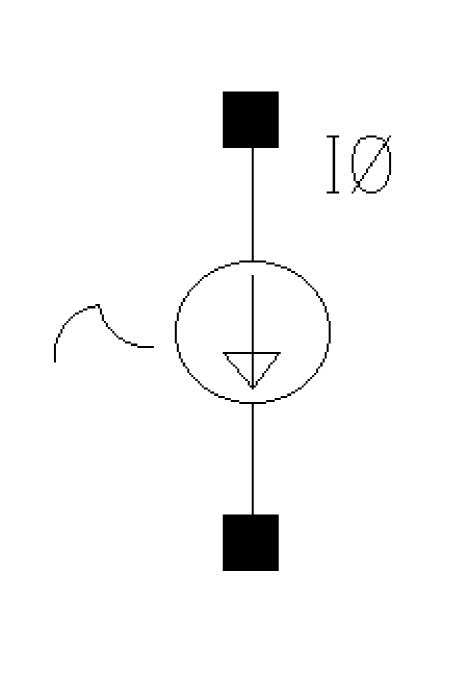

Symbol: iam

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Signal amplitude	`sa`	-	-	-	x	-
Carrier frequency	`fc`	-	-	-	x	-
Modulation frequency	`fm`	-	-	-	x	-
Offset constant	`oc`	-	-	-	x	-
Delay time	`td`	-	-	-	x	-
DC source	`dc`	-	-	-	x	-
Multiplier	`m`	-	-	-	x	-
AC magnitude	`acm`	-	-	-	x	-
AC phase	`acp`	-	-	-	x	-

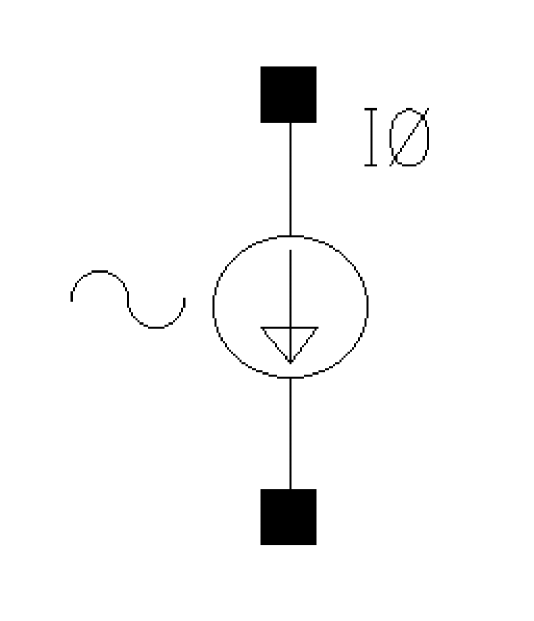

Symbol: isffm

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
AC magnitude	`acm`	-	-	-	x	-
AC phase	`acp`	-	-	-	x	-
DC current	`idc`	-	-	-	-	-
Offset current	`io`	-	-	-	x	-
Amplitude	`ia`	-	-	-	x	-
Frequency	`freq`	-	-	-	x	-
Modulation index	`mdi`	-	-	-	x	-
Signal frequency	`fs`	-	-	-	x	-
Multiplier	`m`	-	-	-	x	-

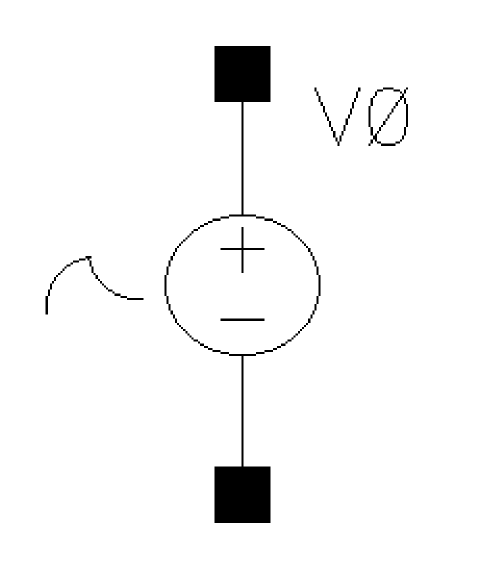

Symbol: vam

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
Signal amplitude	`sa`	-	-	-	x	-
Carrier frequency	`fc`	-	-	-	x	-
Modulation frequency	`fm`	-	-	-	x	-
Offset constant	`oc`	-	-	-	x	-
Delay time	`td`	-	-	-	x	-
DC source	`dc`	-	-	-	x	-
AC magnitude	`acm`	-	-	-	x	-
AC phase	`acp`	-	-	-	x	-

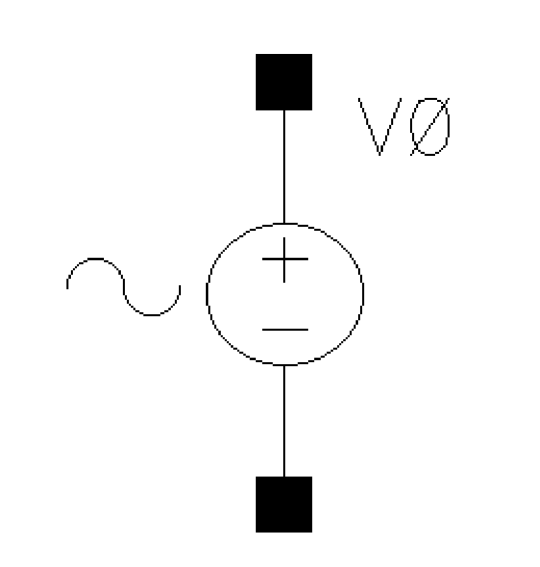

Symbol: vsffm

CDF Parameters

CDF Parameter Label	CDF Parameter	spectre	auCdl	auLvs	hspiceD	UltraSim
AC magnitude	`acm`	-	-	-	x	-
AC phase	`acp`	-	-	-	x	-
DC voltage	`vdc`	-	-	-	-	-
Offset voltage	`vo`	-	-	-	x	-
Amplitude	`va`	-	-	-	x	-
Frequency	`freq`	-	-	-	x	-
Modulation index	`mdi`	-	-	-	x	-
Signal frequency	`fs`	-	-	-	x	-
DC source	`dc`	-	-	-	x	-
