Sources - Global Components

---

This chapter contains a list of all those components of the Analog Library that netlist as a global net.

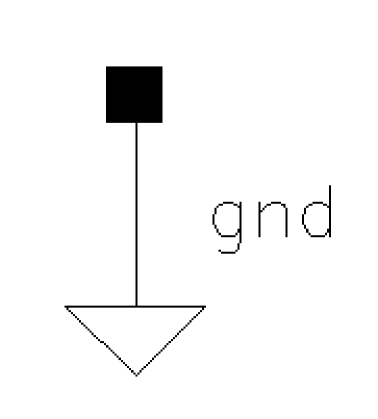

Symbol: gnd

Component Parameters

gnd has no component parameters.

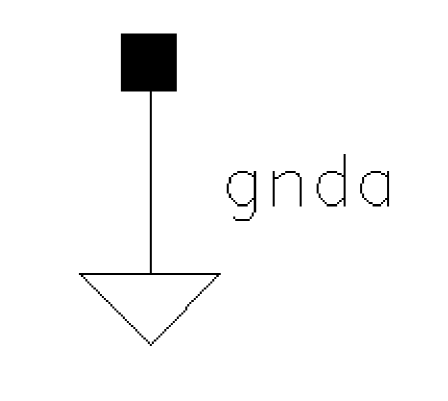

Symbol: gnda

Component Parameters

gnda has no component parameters.

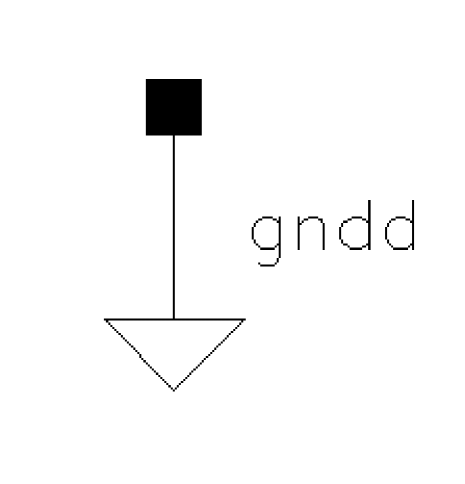

Symbol: gndd

Component Parameters

gndd has no component parameters.

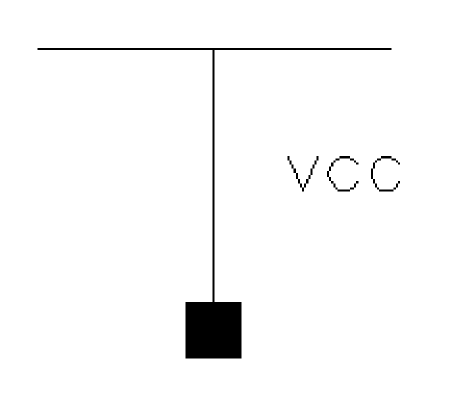

Symbol: vcc

Component Parameters

vcc has no component parameters.

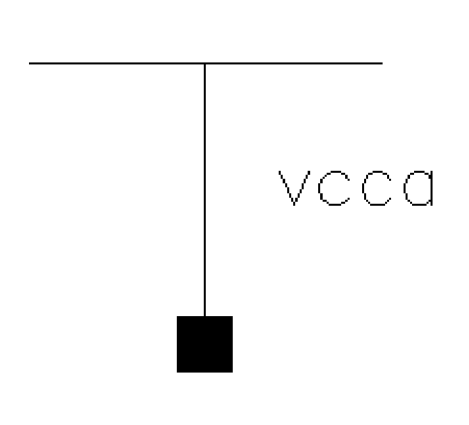

Symbol: vcca

Component Parameters

vcca has no component parameters.

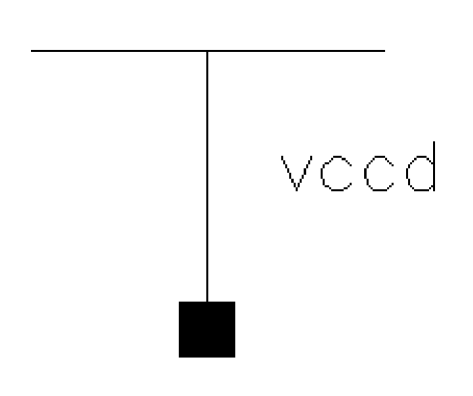

Symbol: vccd

Component Parameters

vccd has no component parameters.

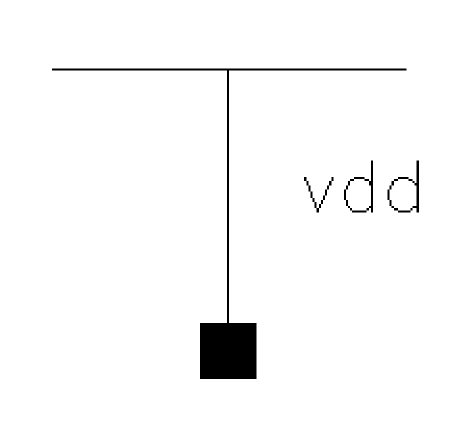

Symbol: vdd

Component Parameters

vdd has no component parameters.

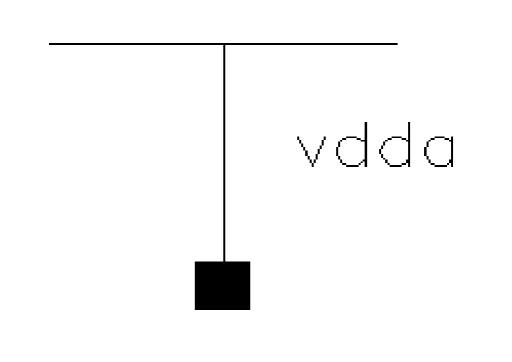

Symbol: vdda

Component Parameters

vdda has no component parameters.

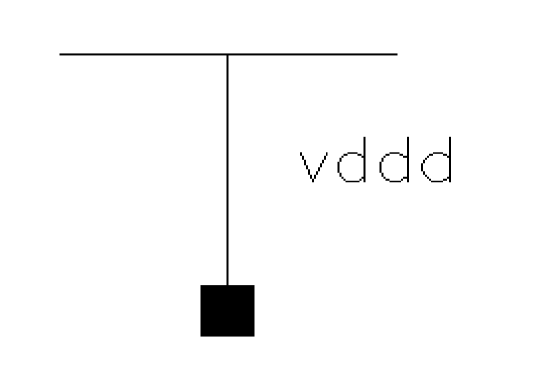

Symbol: vddd

Component Parameters

vddd has no component parameters.

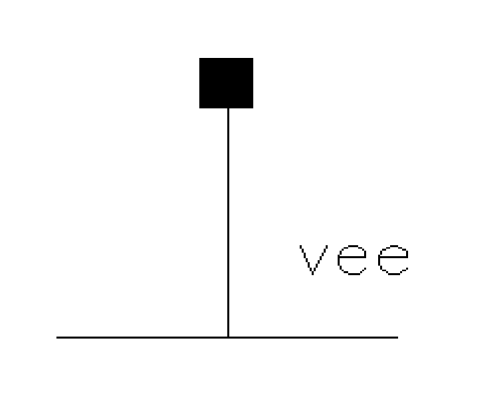

Symbol: vee

Component Parameters

vee has no component parameters.

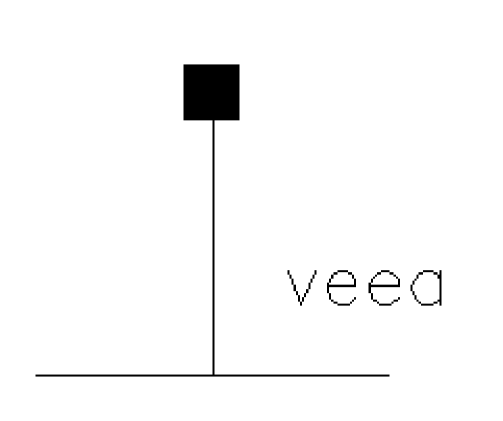

Symbol: veea

Component Parameters

veea has no component parameters.

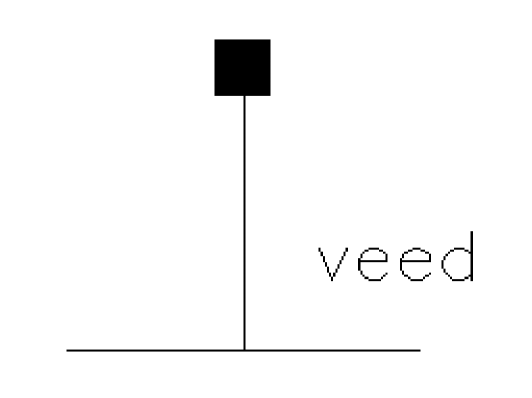

Symbol: veed

Component Parameters

veed has no component parameters.

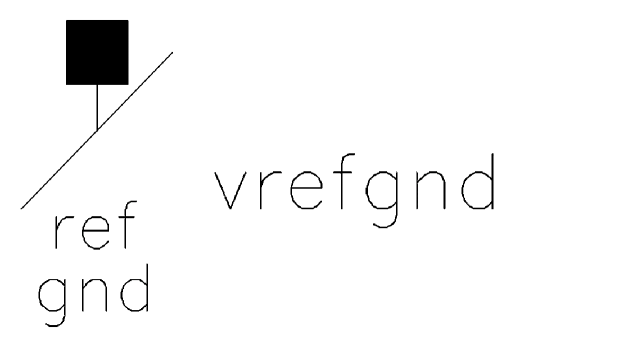

Symbol: vrefgnd

This component can be used at either the global level or the subckt level as a local option. For example, if it is in the netlist, option vrefgnd1 is applied at the subckt level and vrefgnd2 is applied on the top node, as follows:

vrefgnd1 options node_name=n1 subckt=x1
vrefgnd2 options node_name=top_n1

Here,

• vrefgnd1 is applied to subcktx1 and node x1.n1 is used as reference gnd.
• vrefgnd2 is applied to the top level and node n1 is used as reference gnd.

Component Parameters

vrefgnd has no component parameters.

Symbol: vss

Component Parameters

vss has no component parameters.

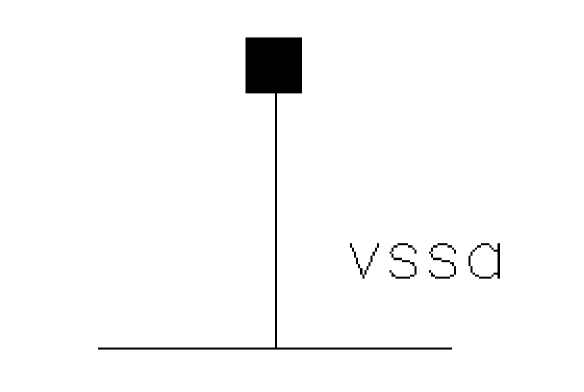

Symbol: vssa

Component Parameters

vssa has no component parameters.

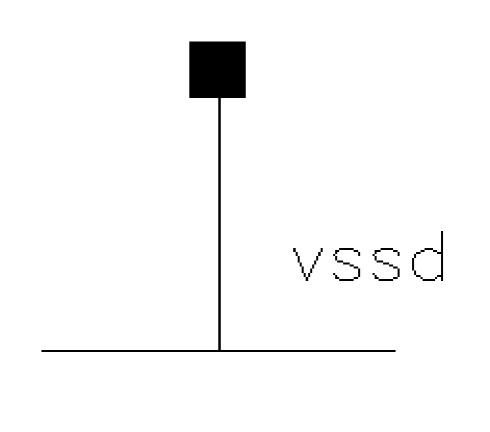

Symbol: vssd

Component Parameters

vssd has no component parameters.
