minIsolatedArea

spacings(
( minIsolatedArea tx_layer
 ['exceptSpacing g_exceptSpacing] ]
 f_area
)

) ;spacings

Specifies the minimum area required for shapes when no other shape is in a defined region.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_area	The minimum area in square microns.

Parameters

'exceptSpacing g_exceptSpacing
	The constraint does not apply if another shape on the same layer is at a distance that is less than this value.

Example

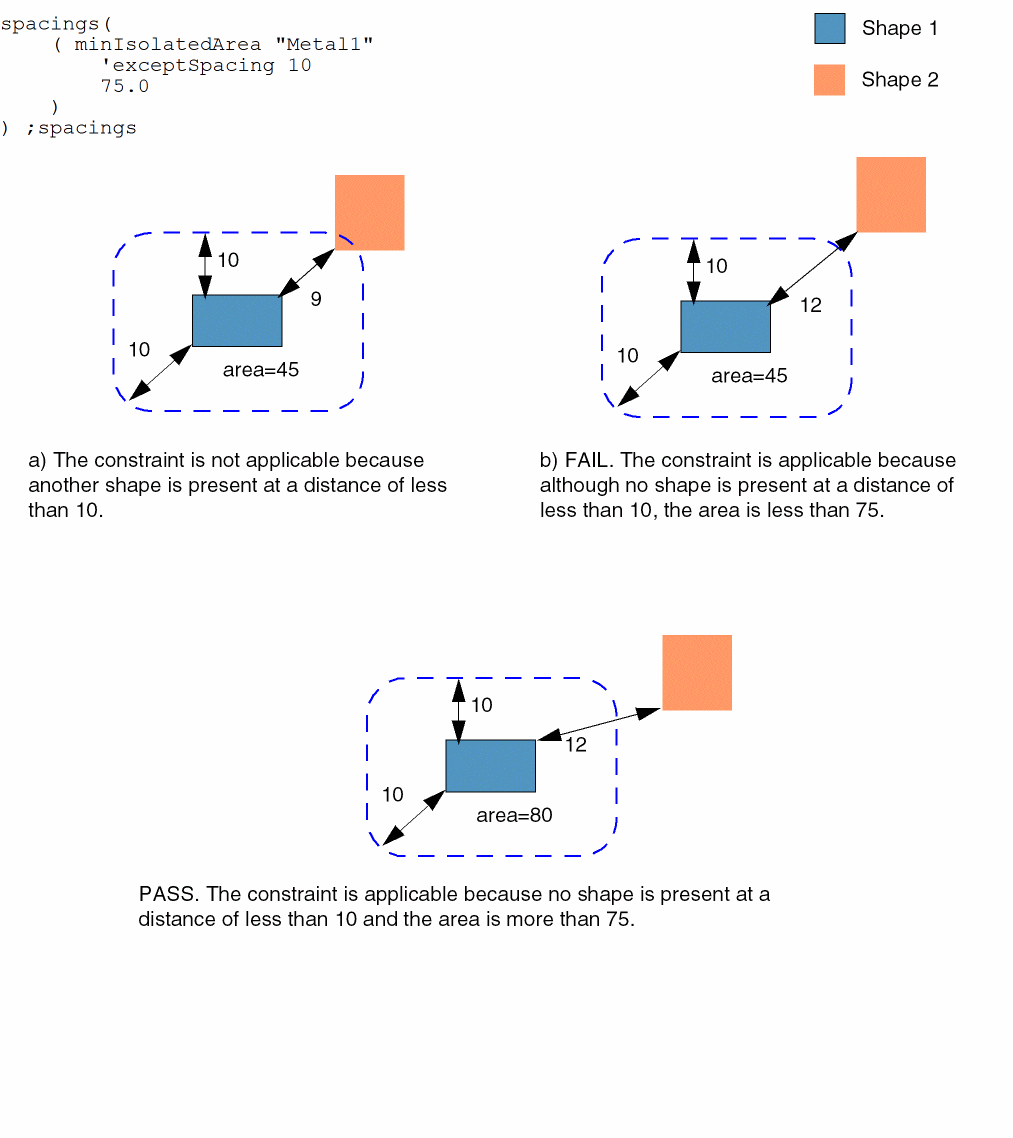

The minimum area for shapes on Metal1 is 75 except when another shape on the same layer is at a distance of less than 10.
