allowedGateLengthRanges

orderedSpacings(
( allowedGateLengthRanges tx_layer1 tx_layer2
 (g_ranges)
)

) ;orderedSpacings

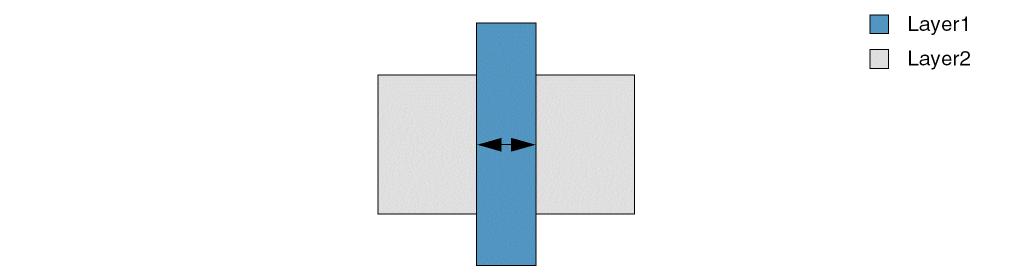

Specifies the allowed channel length. The channel length is the width of the poly shape over active.

Values

tx_layer1	The first layer (poly) on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
tx_layer2	The second layer (active) on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
g_ranges	The allowed ranges for the channel length (that is, poly width). Type: Floating-point values specifying length ranges

Parameters

None

Example

The channel length must be greater than 0.2 and less than 0.4 or greater than or equal to 1.0.

orderedSpacings(
    ( allowedGateLengthRanges "Poly" "Active"
     ("(0.2 0.4)" ">=1.0")
 )
) ;orderedSpacings
