maxWidth

spacings(
( maxWidth tx_layer
 ['vertical | 'horizontal]
 ['insideLayers (tx_layer1 tx_layer2 … tx_layerN)
  ['insidePurposes (t_purpose1 t_purpose2 … t_purposeN)]
  |
  'outsideLayers (tx_layer1 tx_layer2 … tx_layerN)
  ['outsidePurposes (t_purpose1 t_purpose2 … t_purposeN)]
 ]
 f_width
)
) ;spacings

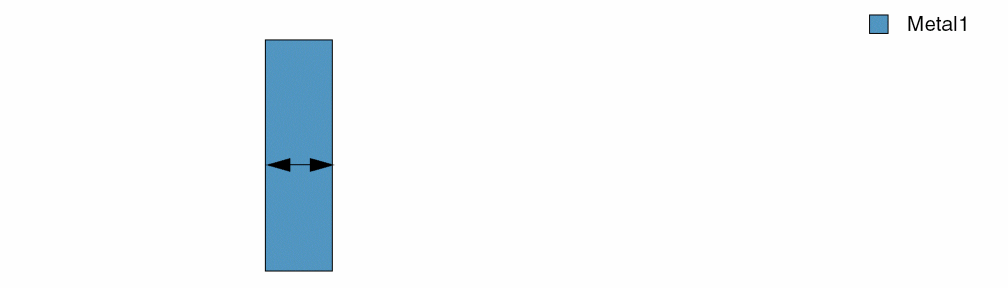

Specifies the maximum width for a shape on the specified layer.

Values

tx_layer

The layer on which the constraint is applied.

Type: String (layer and purpose names) or Integer (layer number)

f_width

The width of the shape must be less than or equal to this value.

Parameters

'horizontal | 'vertical

(Virtuoso Advanced Node for Layout Only) The direction in which width is measured. If direction is not specified, width is measured in any direction.

This parameter can be used to model the width of a shape in a direction perpendicular to the routing direction specified for the layer.

Type: Boolean

'insideLayers (tx_layer1 tx_layer2 … tx_layerN)
| 'outsideLayers (tx_layer1 tx_layer2 … tx_layerN)



Determines if the constraint applies, based on the presence or absence of one or more layers.

  • 'insideLayers: The constraint applies only if the shapes on the specified layer (layer) overlap a shape on one of these layers (layer1 layer2 … layerN).
  • 'outsideLayers: The constraint applies only if the shapes on the specified layer (layer) overlap the region outside the shapes on one of these layers (layer1 layer2 … layerN).

For more information, see Region-based Rule (One layer).

Type: String (layer name) or Integer (layer number)

'insidePurposes (t_purpose1 t_purpose2 … t_purposeN)

The 'insideLayers parameter is limited to only the specified purposes.

Type: String (purpose name)

'outsidePurposes (t_purpose1 t_purpose2 … t_purposeN)

The 'outsideLayers parameter is limited to only the specified purposes.

Type: String (purpose name)

Example

The maximum width of shapes on Metal3 must be 2.5.

spacings(
    ( maxWidth "Metal3" 2.5 )
) ;spacings
