minEdgeAdjacentDistance

spacings(
( minEdgeAdjacentDistance tx_layer
 'length f_length
 'edgeCount x_edgeCount
 ['exceptSameCorner]
 f_distance
)

) ;spacings

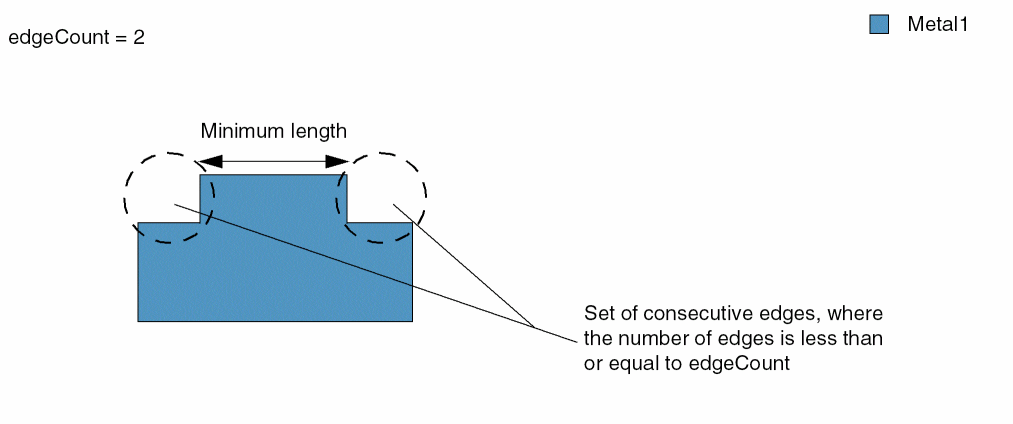

Specifies the minimum distance along the edge between two sets of connected edges. Each connected edge must be shorter than length and the number of connected edges must be less than or equal to edgeCount.

This constraint is usually applied in combination with the maxNumMinEdges constraint.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_distance	The distance between two sets of connected edges must be greater than or equal to this value.

Parameters

'length f_length	Each connected edge must have length less than this value.
'edgeCount x_edgeCount
	The number of connected edges shorter than length must be less than or equal to this value.
'exceptSameCorner	The constraint does not apply to an edge that has the same type of 90-degree corner (convex or concave) at each end.

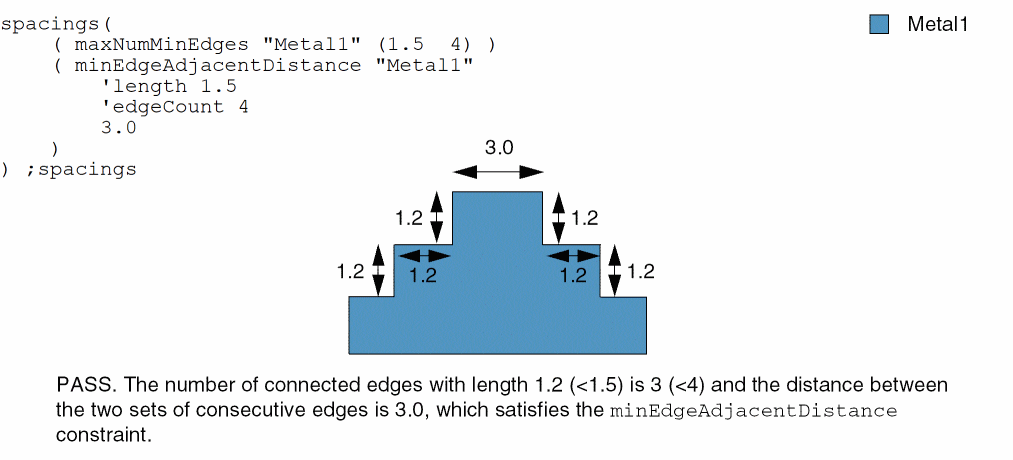

Example

The distance between two sets of connected edges, each with length less than 1.5, must be greater than or equal to 3.0, provided the number of connected edges in each set is less than or equal to 4.
