vertexInsideForbidden

orderedSpacings(
( vertexInsideForbidden tx_layer1 tx_layer2 )

) ;orderedSpacings

(Virtuoso Advanced Node for Layout Only) Specifies that the vertices of a shape on layer1 are not allowed inside a shape on layer2.

Values

tx_layer1	The first layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
tx_layer2	The second layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)

Parameters

None

Example

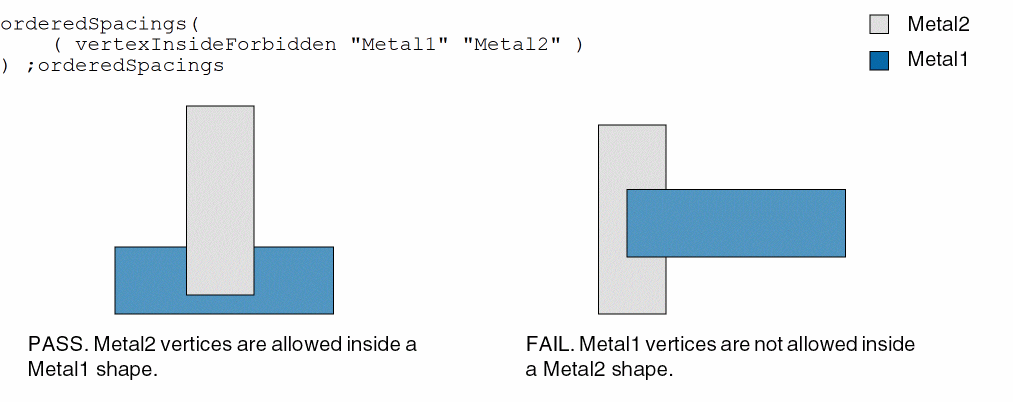

The constraint allows Metal2 vertices inside a Metal1 shape. However, Metal1 vertices are not allowed inside a Metal2 shape.
