minInsideCornerOverlap

orderedSpacings(
( minInsideCornerOverlap tx_layer1 tx_layer2
 f_space
)

) ;orderedSpacings

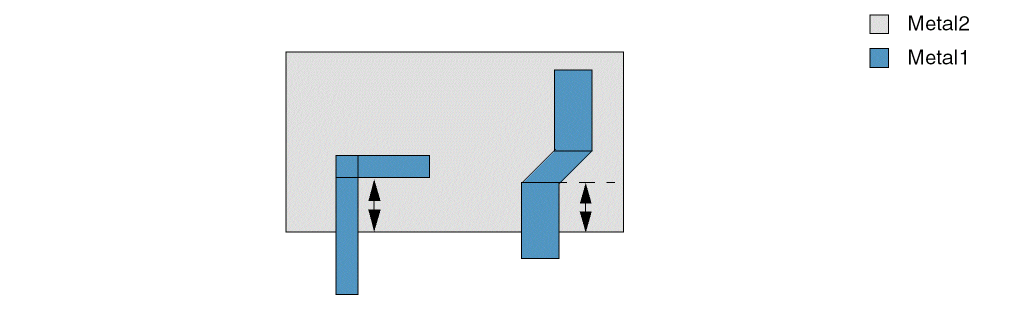

Specifies the minimum overlap of a shape on layer2 over an inside corner of a shape on layer1.

The constraint applies to shapes with both 45 and 90 degree bends.

Values

tx_layer1	The first layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
tx_layer2	The second layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_space	The overlap must be greater than or equal to this value.

Parameters

None

Example

The overlap of a Metal2 shape on an inside corner of a Metal1 shape must be at least 1.0.

orderedSpacings(
    ( minInsideCornerOverlap "Metal1" "Metal2"
     1.0
 )
) ;orderedSpacings
