numStrands

spacings(
( numStrands x_strands )

) ;spacings

Specifies the number of strands used to route between pins.

Values

x_strands

Specifies the number of strands used to route between pins.

Parameters

None

Examples

• Example 1: Fat-to-fat pins
• Example 2: Fat-to-many pins
• Example 3: Many-to-many pins

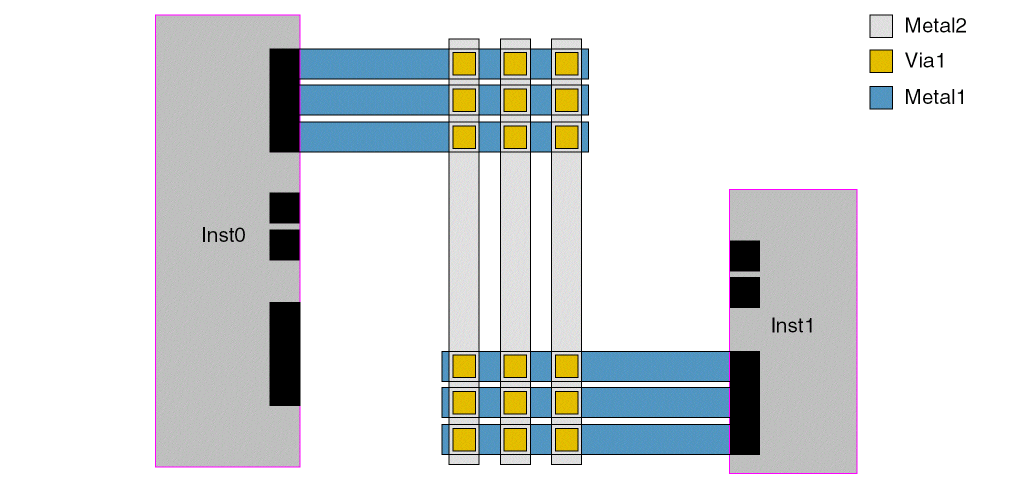

Example 1: Fat-to-fat pins

The pin is split to accommodate the number of (n=3) strands.

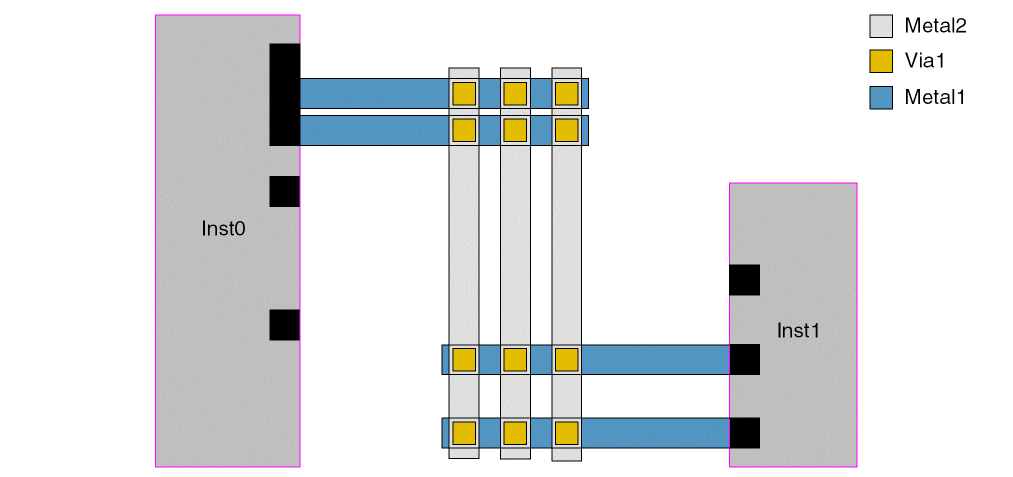

Example 2: Fat-to-many pins

The fat pin is split to accommodate the number (n=2) of strands, and then the n strands are distributed among the pins of the "many" cluster.

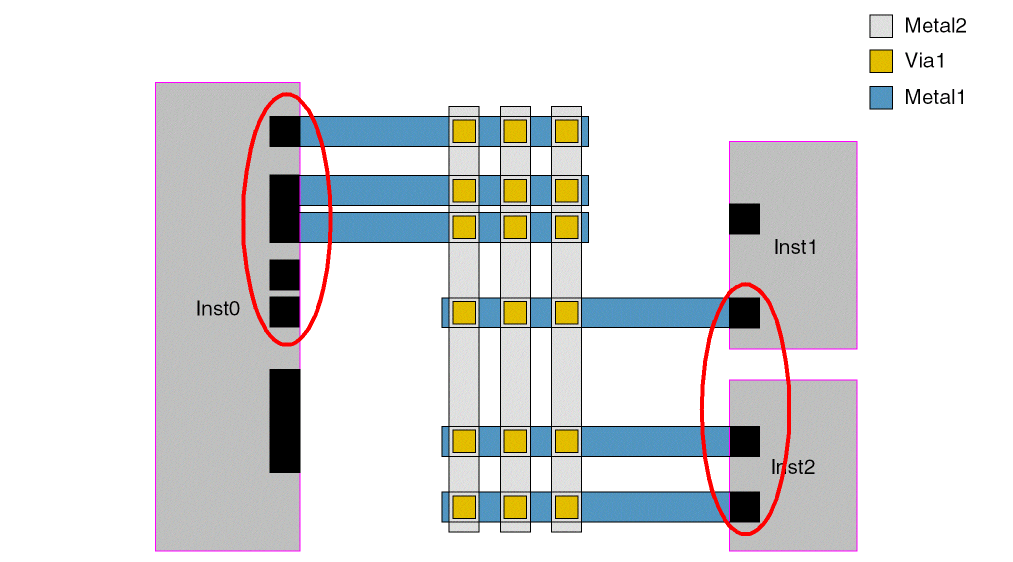

Example 3: Many-to-many pins

The number of strands (n=3) is distributed among the pins in the cluster.
