Values
|
The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number) |
|
|
The dimensions of the keepout region in the vertical and horizontal directions. |
|
Parameters
|
The constraint applies to shapes abutting the keepout window. |
|
|
The constraint applies only if the width of the other wire is in the specified range. |
Example

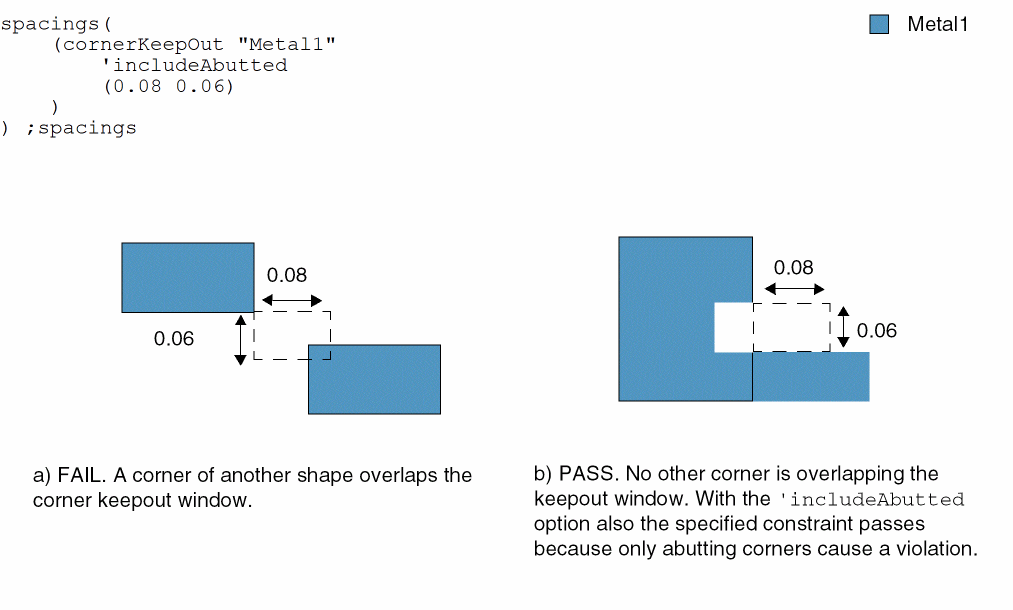

A keepout region of size 0.08 by 0.06 is created at each corner. It is a violation if a corner of another shape overlaps or touches this region.
