cornerOnlyEndOfLineKeepout

spacings(
( cornerOnlyEndOfLineKeepout tx_Layer
 'minEolWidth g_minEolWidth
 'eolSpacing g_eolSpacing
 ( f_backwardExt f_sideExt f_forwardExt )
)

) ;spacings

(Virtuoso Advanced Node for Layout Only) Specifies a keepout region for a neighbor wire corner formed by three given values by extending from the corners of an end-of-line edge that fulfills certain given conditions.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_backwardExt f_sideExt f_forwardExt

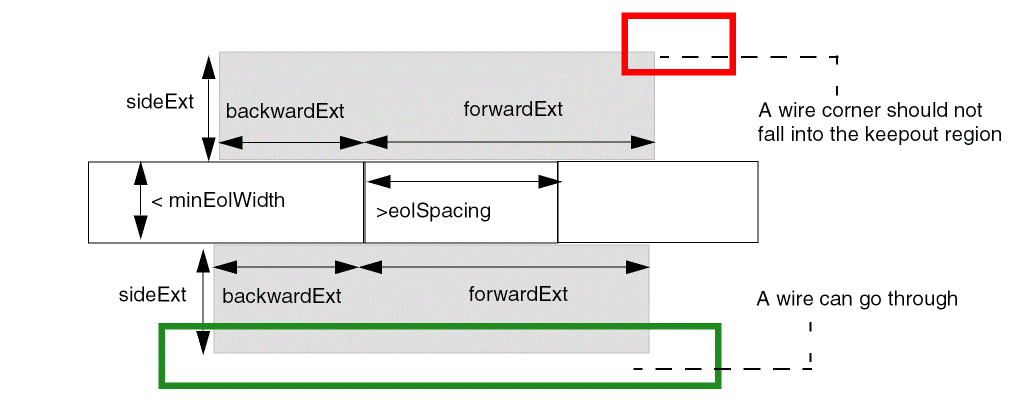

	The amount of extension from the corner of the end-of-line edge: f_backwardExt indicates extension in the backward direction. f_sideExt indicates extension to the side. f_forwardExt indicates extension in the forward direction.

Parameters

'minEolWidth g_minEolWidth
	The constraint applies when the facing end-of-line edge has width less than the given value.
'eolSpacing g_eolSpacing
	The constraint applies when the spacing of the end-of-line edge to a neighbor wire with PRL greater than 0 to the end-of-line edge is greater than the given value.

Example

Specifies a keepout region for a neighbor wire corner when the following conditions are met:

• The facing end-of-line edge has width less than 0.05.
• The spacing of the end-of-line edge to a neighbor wire with PRL greater than 0 to the end-of-line edge must be greater than 0.1.

The facing end-of-line edges have a keepout area extending by 0.08, 0.06, and 0.09 in the backward, side, and forward directions, respectively.

spacings(

        (cornerOnlyEndOfLineKeepout "Metal1"
      'eolWidth 0.05
   'eolSpacing 0.1
   (0.08 0.06 0.09))

) ;spacings
