minEndOfLineToNotchSpacing

spacings(
( minEndOfLineToNotchSpacing tx_layer
 'width f_width 'notchLength f_notchLength
 f_spacing
)

) ;spacings

(Virtuoso Advanced Node for Layout Standard) Specifies the minimum spacing between an end-of-line edge and a notch whose length is less than the specified notch length.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The required minimum spacing.

Parameters

'width f_width
	The constraint applies only if the width of an end-of-line edge is less than this value.
'notchLength f_notchLength
	The constraint applies only if the length of the notch is less than this value.

Example

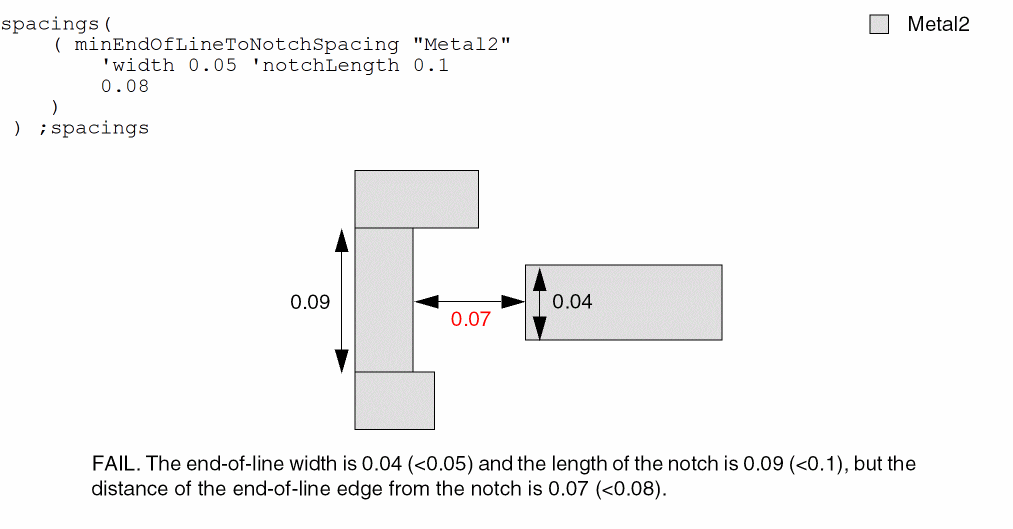

The distance between an end-of-line edge that is less than 0.05 wide and a notch that is less than 0.1 in length must be at least 0.08.
