minEndOfNotchSpacing

spacings(
( minEndOfNotchSpacing tx_layer
 'notchWidth f_notchWidth
 'notchLength f_notchLength
 'notchSpacing f_notchSpacing
 f_spacing
)

) ;spacings

Specifies the minimum spacing between the closed side of a U-shaped notch and any other shape on the layer with a parallel overlap with the notch.

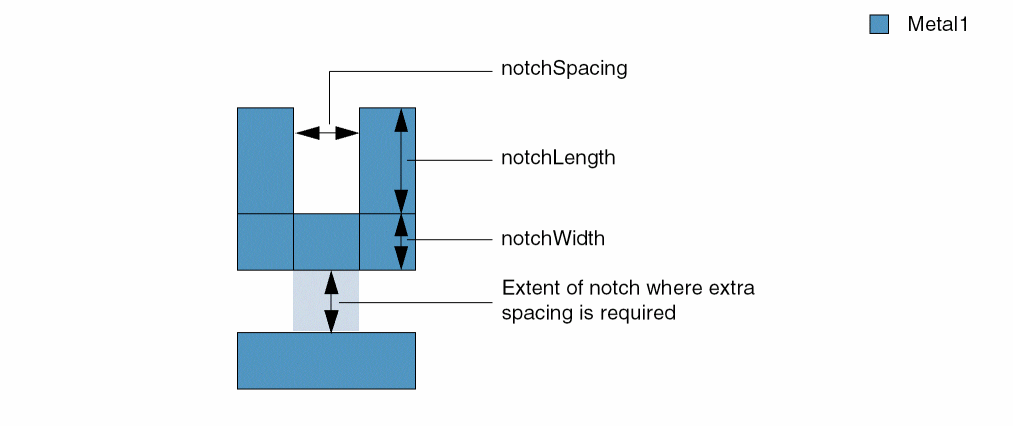

The extent of the notch where extra spacing is required is shown below.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The spacing between the notch and the neighboring shape must be greater than or equal to this value.

Parameters

'notchWidth f_notchWidth
	The constraint applies only if notch width is less than this value.
'notchLength f_notchLength
	The constraint applies only if notch length is greater than or equal to this value.
'notchSpacing f_notchSpacing
	The constraint applies only if notch spacing is less than or equal to this value.

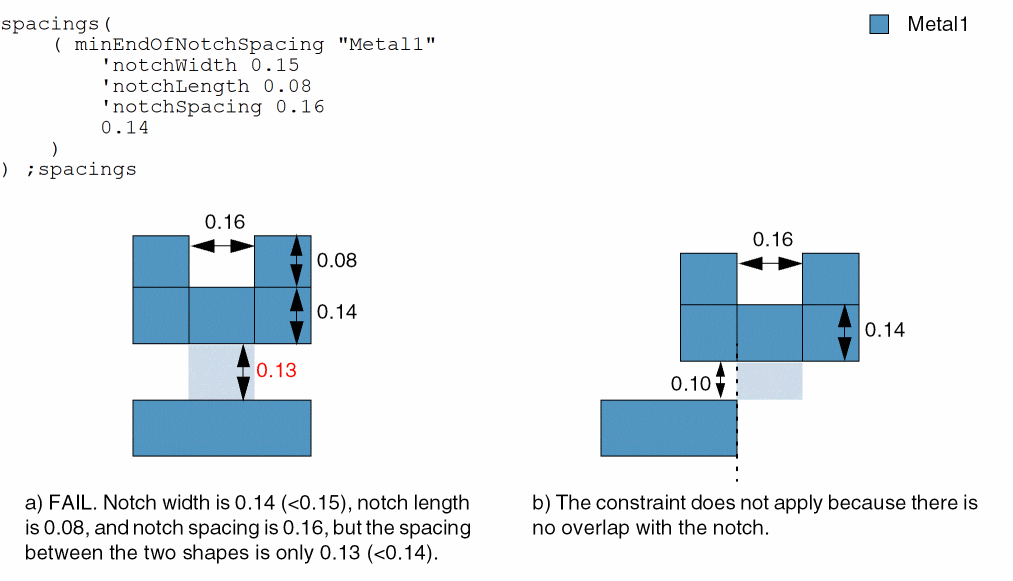

Example

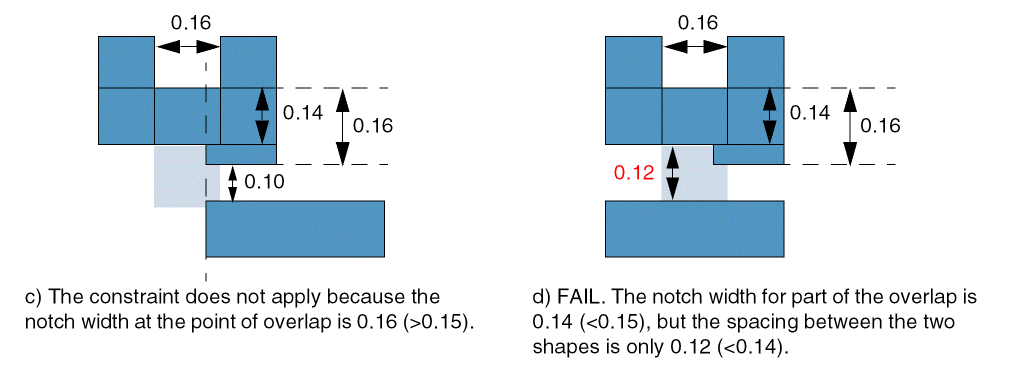

The spacing between the closed end of a notch and a shape that has a parallel overlap with the notch must be at least 0.14 if all of the following conditions are satisfied: notch width is less than 0.15, notch length is greater than or equal to 0.08, and notch spacing is less than or equal to 0.16.
