minFillToFillSpacing

spacings(
( minFillToFillSpacing tx_Layer
 f_spacing
)

) ;spacings

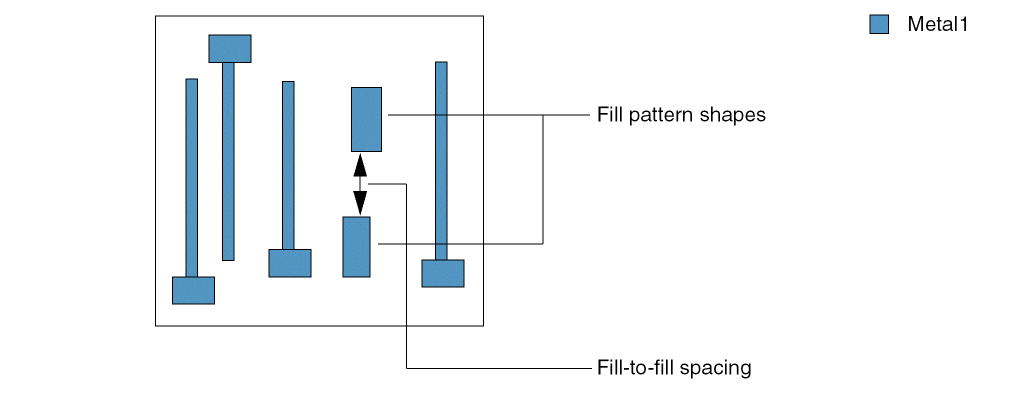

Specifies the minimum spacing between the fill shapes on a layer.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The spacing between fill shapes must be greater than or equal to this value.

Parameters

None

Example

The minimum spacing between fill shapes on Metal1 must be at least 0.2.

spacings(
    ( minFillToFillSpacing "Metal1"
     0.2
 )
) ;spacings
