minFillToShapeSpacing

spacings(
( minFillToShapeSpacing tx_layer
 f_spacing
)

) ;spacings

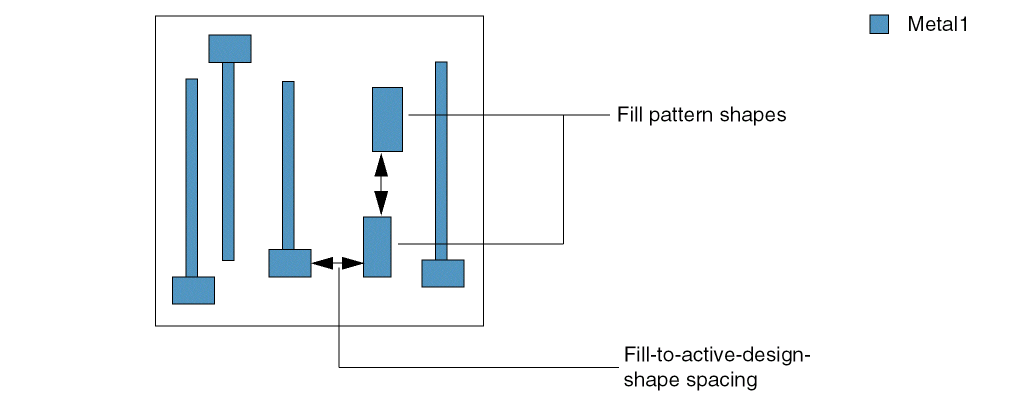

Specifies the minimum spacing between fill shapes and active design shapes on a layer.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The spacing between a fill shape and an active design shape must be greater than or equal to this value.

Parameters

None

Example

The minimum spacing between fill shapes and active design shapes must be greater than or equal to 1.0 on Metal1 and greater than or equal to the value of the technology parameter minfillt2objspace1 on Metal2.

spacings(
    ( minFillToShapeSpacing "Metal1"
     1.0
 )
 ( minFillToShapeSpacing "Metal2"
  techParam("minfill2objspace1")
 )

) ;spacings
