pgViaTrack

spacings(
( pgViaTrack tx_cutLayer
 'coreOffset f_offset
 {'horizontalTrack | 'verticalTrack}
 f_pitch
)

) ;spacings

(Virtuoso Advanced Node for Layout Standard) Specifies the pitch of the tracks on cutLayer, in the specified direction.

Values

tx_cutLayer

The cut layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)

Parameters

'coreOffset f_offset
	The starting coordinate of the track with respect to the origin of the core.
'horizontalTrack | 'verticalTrack
	The direction of the tracks. Type: Boolean

Example

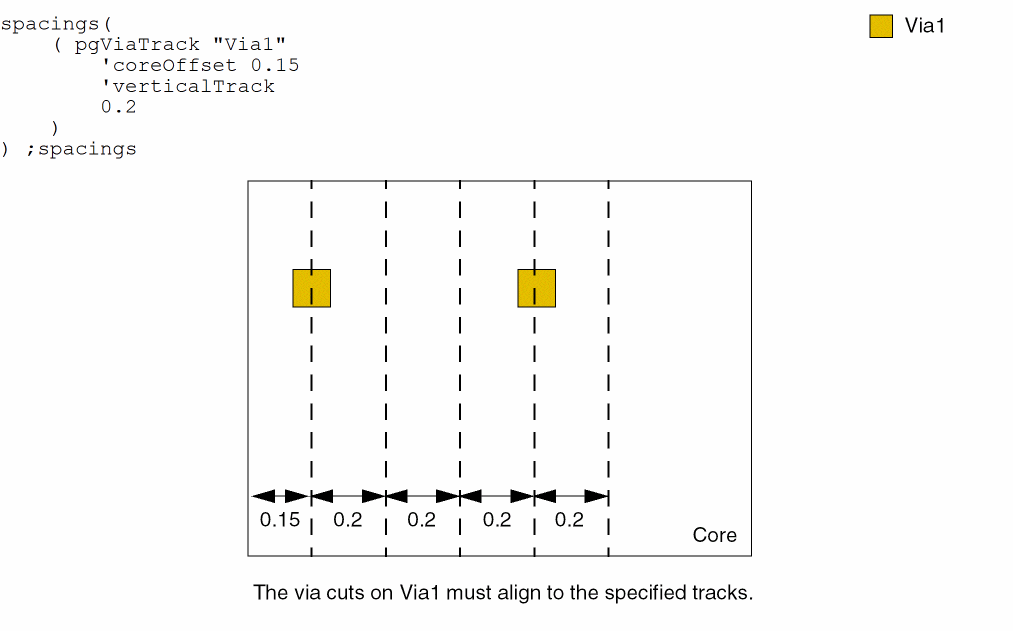

The tracks on Via1 are defined with the starting coordinate of 0.01 with respect to the origin of the core and a repeatable pitch of 0.2.
