requiredEndOfLineShape

spacings(
( requiredEndOfLineShape tx_layer
 'shapeWidthRange f_shapeWidthRange
 'lengthRange f_lengthRange
 ['horizontal | 'vertical]
 f_spacingRange
)

) ;spacings

(Virtuoso Layout Suite EXL and higher tiers) Specifies the spacing at which at least one end-to-end shape must be present on at least one end of a rectangular shape.

Values

tx_layer

The layer on which the constraint is applied.

Type: String (layer and purpose names) or Integer (layer number)

f_spacingRange

The spacing at which an end-to-end shape must be present on at least one of the ends of a rectangular shape.

Parameters

`'shapeWidthRange` f_shapeWidthRange
	The width of the rectangular shape on which the constraint applies must be within this range. Type: Floating-point values specifying a range of widths that trigger the constraint
`'lengthRange` f_lengthRange
	The length of the rectangular shape on which the constraint applies must be within this range.
`'horizontal \| 'vertical`
	The direction in which spacing between shapes is measured. If direction is not specified, spacing is measured in any direction. Type: Boolean

Example

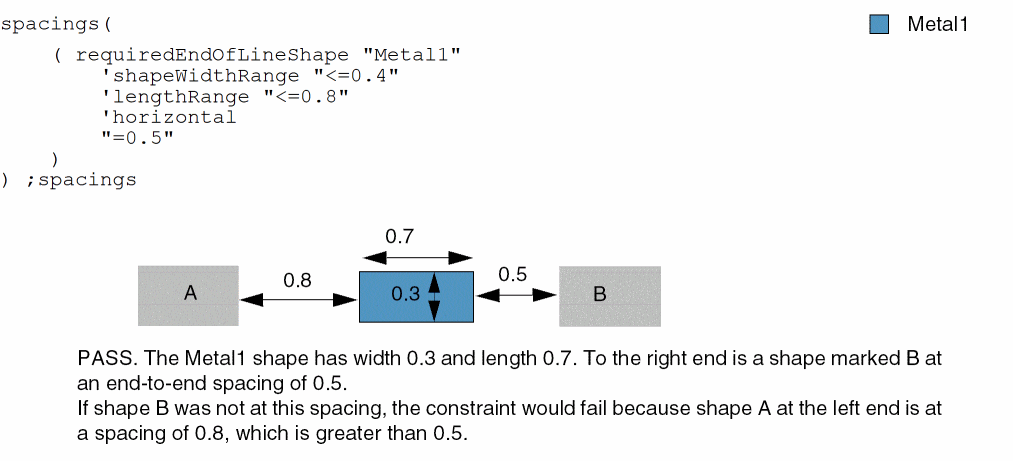

A rectangular shape whose width is less than or equal to 0.4 and length less than or equal to 0.8 must have at least one neighboring shape at a spacing of 0.5 measured in the horizontal direction.
