maxSpacing

spacings(
( maxSpacing tx_layer1 tx_layer2
 f_spacing
)

) ;spacings

Defines the maximum spacing between shapes on the specified layers.

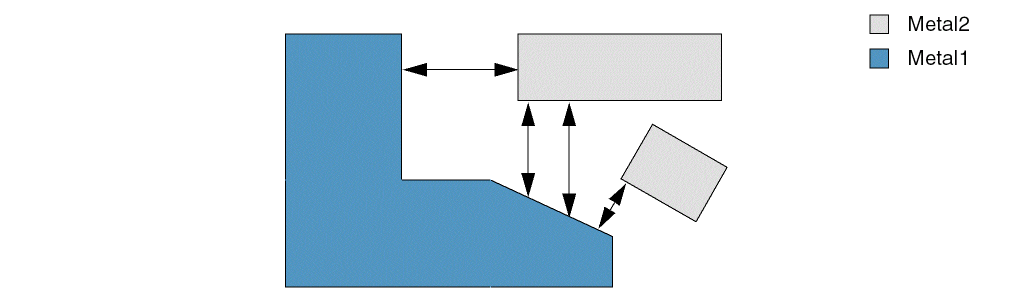

The constraint applies only to non-intersecting shapes on two different layers.

Values

tx_layer	The layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The maximum spacing between the shapes.

Parameters

None

Example

The maximum spacing between a Metal1 shape and a Metal2 shape must be 4.6.

spacings(
    ( maxSpacing "Metal1" "Metal2"
     4.6
 )
) ;spacings
