minCenterLineSpacing (Two layers)

orderedSpacings(
( minCenterLineSpacing tx_layer1 tx_layer2
 f_spacing
)

) ;orderedSpacings

(Virtuoso Advanced Node for Layout Standard) Specifies the minimum spacing between the centerlines of the shapes on the specified layers.

Values

tx_layer1	The first layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
tx_layer2	The second layer on which the constraint is applied. Type: String (layer and purpose names) or Integer (layer number)
f_spacing	The spacing from the centerline of the layer1 shape to the layer2 shape must be greater than or equal to this value.

Parameters

None

Example

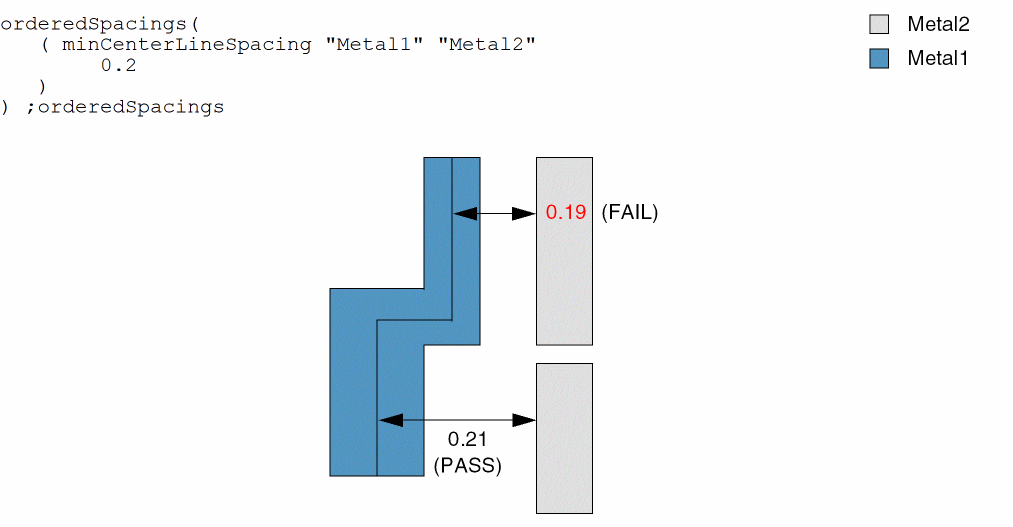

The spacing between the centerlines of a Metal1 shape and a Metal2 shape must be greater than or equal to 0.2.
