Virtuoso Directories Management

If you have used Virtuoso to define analog or mixed-signal IP blocks corresponding to the digital blocks in your design, you can override the digital blocks with the blocks from Virtuoso. These overridden blocks are then used to created netlists that contain a mixed-signal representation of the complete hierarchy.

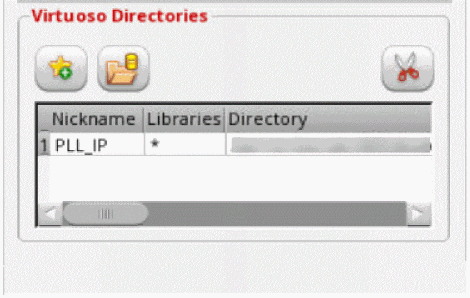

The Virtuoso Directories section in the CLIPS window is used to specify the location of the directories that contain the Virtuoso library files, cds.lib. These cds.lib files contain the paths to the libraries where design files are saved. When you specify a Virtuoso directory, CLIPS uses a nickname in the <Virtuoso directory nickname>:<library>/<cell>/<view> format to identify that directory.
