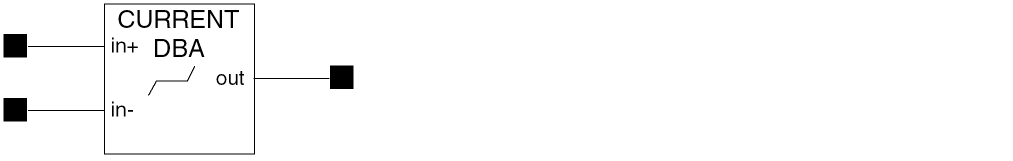

Current Dead-Band Amplifier (currentDba) Symbol
The following table summarizes the details of this symbol.
|
Description
|
Current dead-band amplifier, across specified range, with separately controllable gains in the amplifying regions.
|
|
Library name
|
currentDba
|
|
Transfer function
|
-
If Iin ≥ IinHigh:
Iout = gain2 × (Iin - IinHigh)
+
Iol -
If Iin ≤ Iinlow:
Iout = gain1 × (Iin - Iinlow)
+
Iol
Iin = Iin+ - Iin-
|
|
Properties (Defaults)
|
Iinlow (-1E-3)
IinHigh (1E-3)
Iol (0)
gain1 (1)
gain2 (1)
|
|
Input impedance
|
Infinite
|
|
Output impedance
|
Zero
|
|
Frequency response
|
Flat
|
