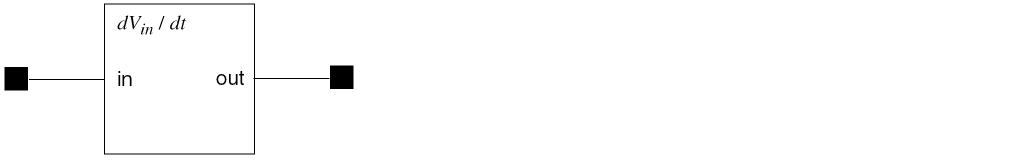

Differentiator Symbol

The following table summarizes the details of this symbol.

Description

Output voltage is the derivative of the input voltage.
Library name

differentiator
Transfer function

Properties (Defaults)

None
Input impedance

Infinite
Output impedance

Zero
Frequency response

Function of frequency.
