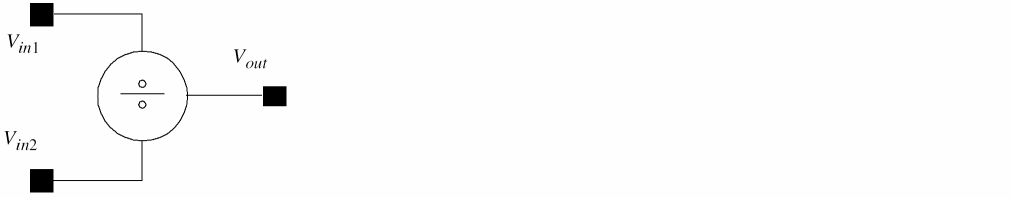

Divider Symbol
The following table summarizes the details of this symbol.
|
Description
|
Output is the quotient of the two input voltages. You need to consider the expected output when using this function; the output can become large even for simple inputs.
|
|
Library name
|
divider
|
|
Transfer function
|
If Vin2 is equal to zero, then Vin2 is set to 1E-12.
|
|
Properties (Defaults)
|
None
|
|
Input impedance
|
Infinite
|
|
Output impedance
|
Zero
|
|
Frequency response
|
Flat
|
