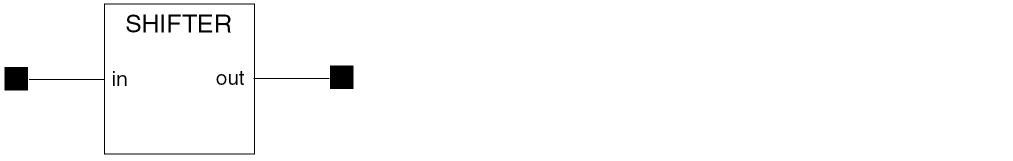

Level Shifter Symbol

The following table summarizes the details of this symbol.

Description

Output is a DC level-shifted version of the input voltage.
Library name

levelShifter
Transfer function

Properties (Defaults)

shift (1)
Input impedance

Infinite
Output impedance

Zero
Frequency response

Flat
