Limiting Amplifier Symbol
The following table summarizes the details of this symbol.
|
Description
|
Hard-limiting voltage amplifier
-
Do not express gain in decibels.
-
VinSym is the input voltage about which the output is symmetrical.
-
VoutSym = (LimitHigh + LimitLow )/2
-
Vin = Vin+ - Vin-
|
|
Library name
|
limitingAmplifier
|
|

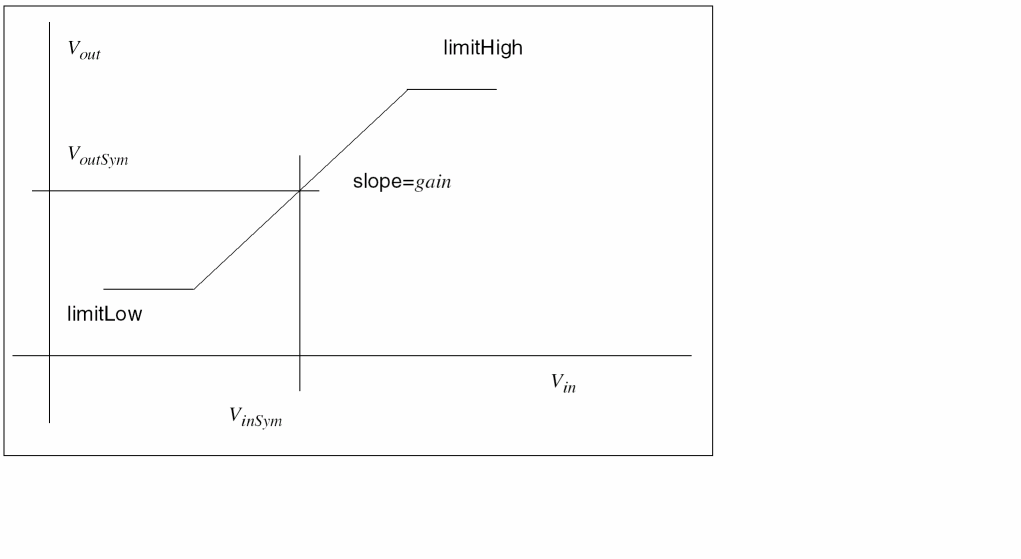

Transfer function
|
If VOut
>LimitHigh
then VOut
= LimitHigh
If VOut
> LimitLow
then VOut
= LimitLow
|
|
Properties (Defaults)
|
gain (1)
LimitHigh (10)
LimitLow (-10)
VinSym (0)
|
|
Input impedance
|
|
|
Output impedance
|
Zero
|
|
Frequency response
|
Flat
|

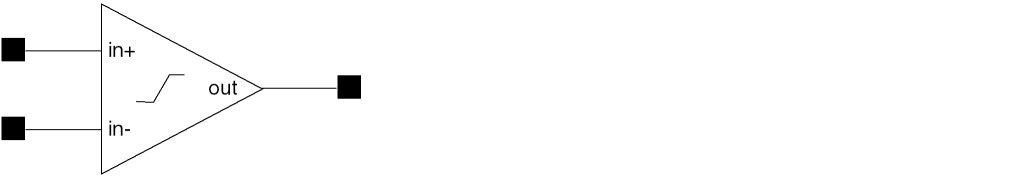

The following figure shows an example of Limiting Amplifier Symbol.
