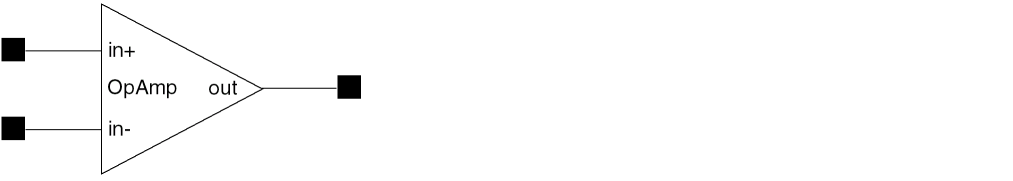

• OpAmp is a high gain open-loop stage, which acts like an ideal operational amplifier; for normal operation, gain control is necessary via feedback components.
• This block can be used as an ideal operational amplifier to produce summing stages, active filters, gain stages, and integrators.
• OpAmp is not the same device created by the OpAmp macromodel product. The OpAmp macromodel product can create a new device each time you use it. The symbol and the accompanying models for the OpAmp macromodel are different from those used within this opAmp component.

opAmp

openLoopGain (1E10)

Infinite

Zero

Flat
