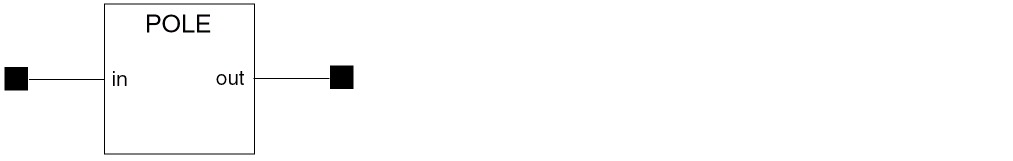

Pole Symbol

The following table summarizes the details of this symbol.

Description

Simple, single-pole transfer function.
Library name

pole
Transfer function

As a function of s,

where,

Properties (Defaults)

fc (1000)

fc is in Hz.
Input impedance

Infinite
Output impedance

Zero
Frequency response

Function of frequency.
