Creating Square and Rectangular Pins in the Pin Tool

To create a square pin from a rectangular pin:

1. Choose Plan – Pin Planning – Pin Tool. The Pin Browser is displayed.
2. Select the required rectangular pin in the Pin Browser.

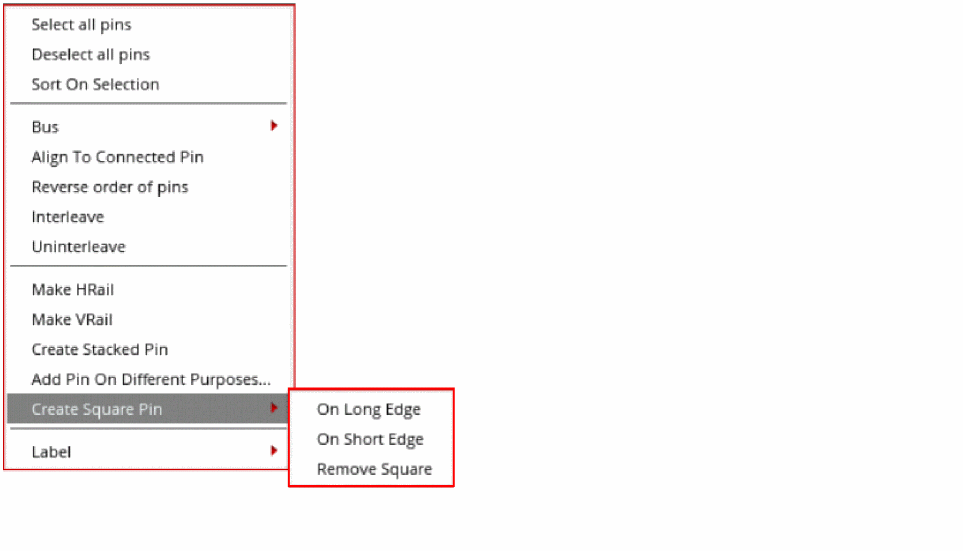

3. Right-click and choose Create Square Pin.


4. Choose one of the following options:
   • On Long Edge: Creates a square boundary with the longer edge as the side. The shorter edge is resized to match the longer edge.

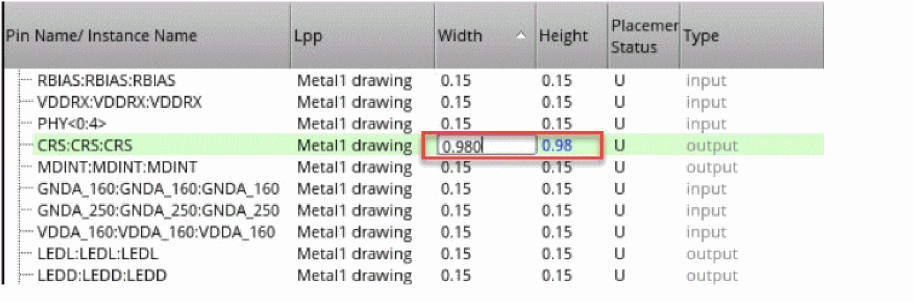

     In the following example, the initial width and height of a pin are 0.15 and 0.98, respectively. On selecting On Long Edge, the shorter edge is resized to 0.98 to create a square pin.


   • On Short Edge: Creates a square boundary with the shorter edge as the side. The longer edge is resized to match the shorter edge.

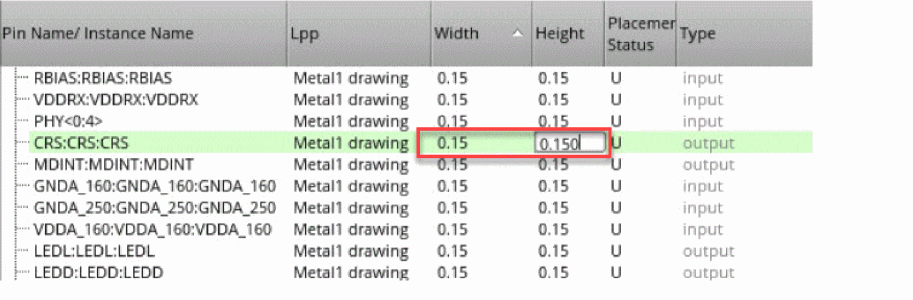

     In the following example, the initial width and height of a pin are 0.15 and 0.98, respectively. On selecting On Short Edge, the longer edge is resized to 0.15 to create a square pin.


   • Remove square: Converts the pin into a rectangular pin without modifying the width and height values. You can edit the Height based on your requirement.
5. Click Apply to reflect the changes in the layout canvas.
