Exporting Pin Information to a Pin File

To export a pin file in the Pin Tool:

1. Choose Plan – Pin Planning – Pin Tool. The Pin Browser is displayed.
2. Choose Tools – Pin File – Export.

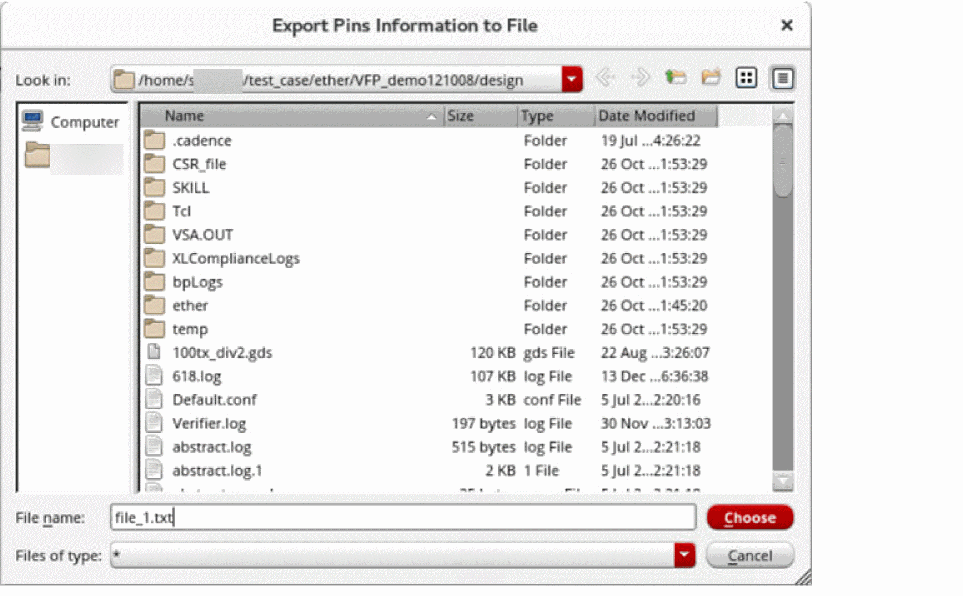

   The Export Pins Information to File form appears.


3. Type a name for the exported pin file in the File name field or select an existing file from the browser.
4. Click Choose to save the pin information in the specified file.
   A dialog box appears asking you to confirm whether you want to export label information along with the pin information.


5. Click Yes to export the label in a different file with label prefixed to the pin file name.

Pin information from the current cellview is stored in the specified pin file.
