relxAddSetupRelxOption

relxAddSetupRelxOption (
[ ?name s_name ]
[ ?type s_type ]
[ ?prompt t_prompt ]
[ ?choices l_choices ]
[ ?value g_value ]
[ ?display g_display ]
[ ?enabled g_enabled ]
[ ?onFields l_onFields ]
[ ?buttonLocation s_buttonLocation ]
[ ?callback t_callback ]
[ ?defValue g_defValue ]
[ ?itemsPerRow x_itemsPerRow ]
[ ?items l_items ]
[ ?frame g_frame ]
[ ?formApplyCB s_formApplyCB ]
[ ?scrollable g_scrollable ]
[ ?tooltip t_tooltip ]
[ ?spacing x_spacing ]
[ ?discLayout s_discLayout ]
[ ?buttonIcon g_buttonIcon ]
)
=> r_fieldHandle

Description

Adds new fields to the Reliability Options form.

This function can be used as a unit function to customize the Custom tab.

Arguments

?name s_name	The symbol name of the field to be added.
?type s_type	Type of the field. Default value: string. Possible values: radio, Boolean, separator, label, cyclic, string, toggle, and button.
?prompt t_prompt	Prompt for the field.
?choices l_choices	List of choices.
?value g_value	Value of the field.
?display g_display	Controls the display of fields on the form. If this argument is set to nil, the field is not displayed in the form.
?enabled g_enabled	Enables or disables the field. When set to t, the field is enabled, When set to nil, the field is disabled and becomes inactive in the form.
?onFields l_onFields	It is applicable only for the disclosureTriangle type of fields.
?buttonLocation s_buttonLocation
	Location of the button. It is applicable only for the Boolean type of fields.
?callback t_callback	Specifies the SKILL functions (callbacks) that execute after you select Apply, OK, or Cancel in the form.
?defValue g_defValue	Default value of the field.
?itemsPerRow x_itemsPerRow
	Number of items in a single row. It is applicable only for the radio and toggle type of fields.
?items l_items	Defines the items in the layout. It is applicable only for gridLayout, horizontalBoxLayout, and verticalBoxLayout fields.
?frame g_frame	Any of the following values: nil: (Default) For an unframed layout. t: For an untitled frame. t_title: For a framed layout with a title. It is applicable only for gridLayout, horizontalBoxLayout, and verticalBoxLayout fields.
?formApplyCB s_formApplyCB
	Calls the formApplyCB function set when a button, such as OK, Apply, and so on, is clicked.
?scrollable g_scrollable
	If set to t, adds a scroll bar in the layout if the content is large and cannot be accommodated. The default value is nil. It is applicable only for gridLayout, horizontalBoxLayout, and verticalBoxLayout fields.
?tooltip t_tooltip	Tooltip for the field.
?spacing x_spacing	Specifies the integer value to apply for horizontal spacing.
?discLayout s_discLayout
	Defines the layout of the disclosure triangle.
?buttonIcon g_buttonIcon
	Defines the button icon.

Value Returned

r_fieldHandle

Handle to the field.

Examples

Add the following SKILL code in the .cdsinit file to add these fields to the Custom tab:

• Circuit Report of type Boolean
• Circuit Report Path of type string
• Circuit Type of type radio
• Include Circuit of type cyclic
• Circuit Mode of type toggle

(defun relxCreateCustomizedTab (formSymbol)

 let((cusTagVertLayout circuitReport circuitReportPath circuitType circuitMode
circuitInclude)

  circuitReport = relxAddSetupRelxOption(  ?name 'circuitReport

             ?type 'Boolean

             ?prompt "Circuit Report"

             ?defValue nil

                       )

  circuitReportPath = relxAddSetupRelxOption(?name 'circuitReportPath

                     ?type 'string

                    ?prompt "Circuit Report Path"

                     )

  circuitType = relxAddSetupRelxOption(  ?name 'circuitType

                     ?type 'radio

                     ?choices list("Static" "Dynamic")

                     ?value "Static"

                     ?prompt " Circuit Type"

                       )

  circuitMode = relxAddSetupRelxOption(?name 'circuitMode

                      ?type 'toggle

             ?choices list( list( 't1 "Simple")

                                                  list('t2 "Complex")

                         list( 't3 "Intermediate")

                           )

                    ?value list( t t t)

                    ?itemsPerRow 2

                    ?prompt " Circuit Mode"

                    )

  circuitType = relxAddSetupRelxOption(?name 'circuitInclude

                     ?type 'cyclic

             ?choices list("Include" "Exclude")

                     ?value "Include"

                     ?prompt "Include Circuit?"

                    )

  cusTagVertLayout = relxAddSetupRelxOption( ?name 'cusTagVertLayout

           ?type 'verticalBoxLayout

           ?items list(

             list(circuitReport)

            list(circuitReportPath)

            list(circuitType)

            list(circuitMode)

            list(circuitInclude)

            list('spacer_item 5)

            list('stretch_item 5)

            )

             )

  cusTagVertLayout

               )

  )

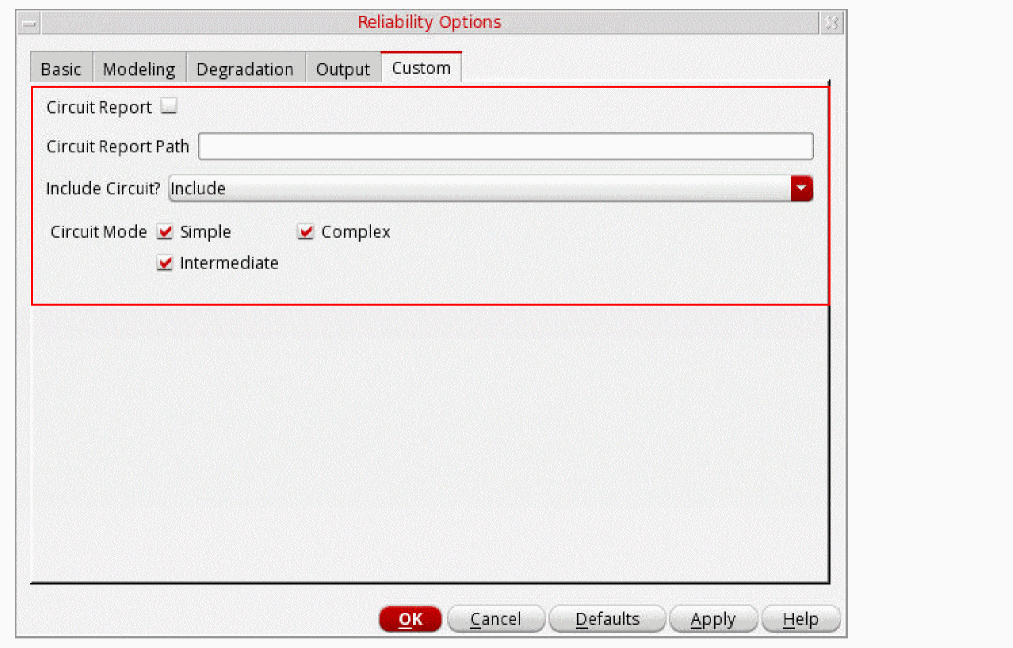

The new fields are added to the Custom tab in the Reliability Options form.
