relxCreateCustomizedTab

relxCreateCustomizedTab(
s_formSymbol
)
=> nil

Description

Adds a customized tab to the Reliability Options form.

Arguments

s_formSymbol

The form symbol

Value Returned

nil	Returns nil by default.

Example

Add the following SKILL code in the .cdsinit file to:

• Create a customized tab named myCustomTab
• Define the following fields:
  • Circuit Report of type Boolean
  • Circuit Report Path of type string
  • Circuit Type of type radio
  • Include Circuit of type cyclic
  • Circuit Mode of type toggle

(defun relxGetCustomTabName ()

    "myCustomTab"

     )

(defun relxCreateCustomizedTab (formSymbol)

 let((cusTagVertLayout circuitReport circuitReportPath circuitType circuitMode
circuitInclude)

  circuitReport = relxAddSetupRelxOption(  ?name 'circuitReport

             ?type 'Boolean

             ?prompt "Circuit Report"

             ?defValue nil

                       )

  circuitReportPath = relxAddSetupRelxOption(?name 'circuitReportPath

                     ?type 'string

                    ?prompt "Circuit Report Path"

                     )

  circuitType = relxAddSetupRelxOption(  ?name 'circuitType

                     ?type 'radio

                     ?choices list("Static" "Dynamic")

                     ?value "Static"

                     ?prompt " Circuit Type"

                       )

  circuitMode = relxAddSetupRelxOption(?name 'circuitMode

                      ?type 'toggle

             ?choices list( list( 't1 "Simple")

                                                  list('t2 "Complex")

                         list( 't3 "Intermediate")

                           )

                    ?value list( t t t)

                    ?itemsPerRow 2

                    ?prompt " Circuit Mode"

                    )

  circuitType = relxAddSetupRelxOption(?name 'circuitInclude

                     ?type 'cyclic

             ?choices list("Include" "Exclude")

                     ?value "Include"

                     ?prompt "Include Circuit?"

                    )

  cusTagVertLayout = relxAddSetupRelxOption( ?name 'cusTagVertLayout

           ?type 'verticalBoxLayout

           ?items list(

             list(circuitReport)

            list(circuitReportPath)

            list(circuitType)

            list(circuitMode)

            list(circuitInclude)

            list('spacer_item 5)

            list('stretch_item 5)

            )

             )

  cusTagVertLayout

               )

  )

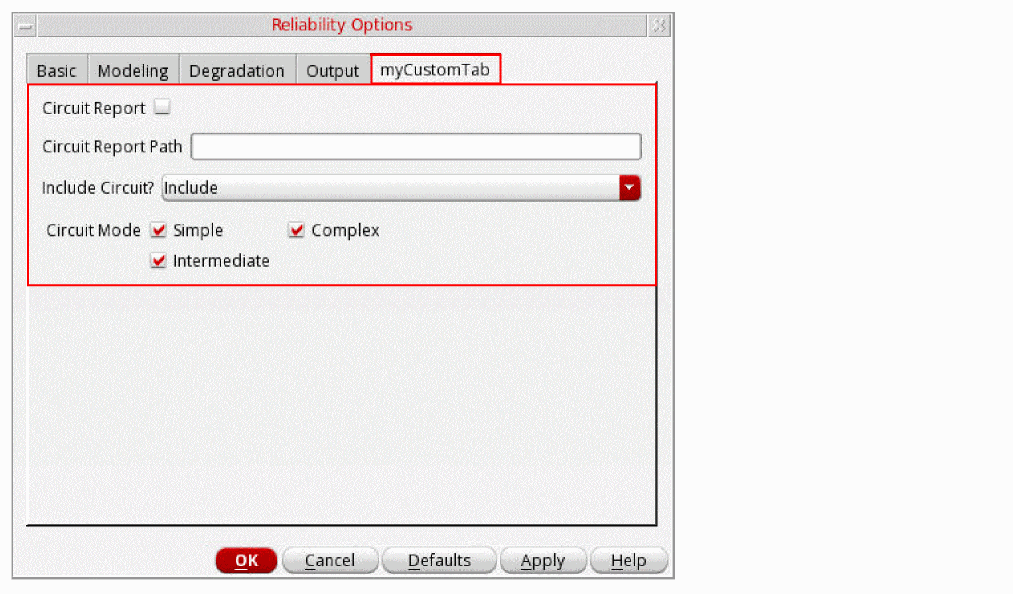

The customized tab, myCustomTab is added to the Reliability Options form. The tab displays the fields defined bu using the relxAddSeupRelxOption SKILL function.
