axlSetDesignVariablePerTest

axlSetDesignVariablePerTest(
x_mainSDB
t_varName
t_testName
[ ?enabled g_enableStatus ]
)
=> t / nil

Description

Enables or disables a design variable for a specific test. In the Setup assistant of ADE Explorer or the Data View assistant of ADE Assembler, it selects or clears the check box next to a design variable under a test.

Arguments

x_mainsSDB	Handle to the main setup database
t_varName	Name of the design variable
t_testName	Name of the test
?enabled g_enableStatus
	Enable status to be set for the given design variable Default value: t

Value Returned

t	The design variable was enabled or disabled for the test.
nil	The command was unsuccessful.

Examples

The following example enables a design variable, IREF, for the ACGainBW test.

s1 = axlGetWindowSession()
=> "session0"
x_mainSDB = axlGetMainSetupDB( s1 )
=> 1001
axlSetDesignVariablePerTest(x_mainSDB "IREF" "ACGainBW" ?enabled t)
=> t

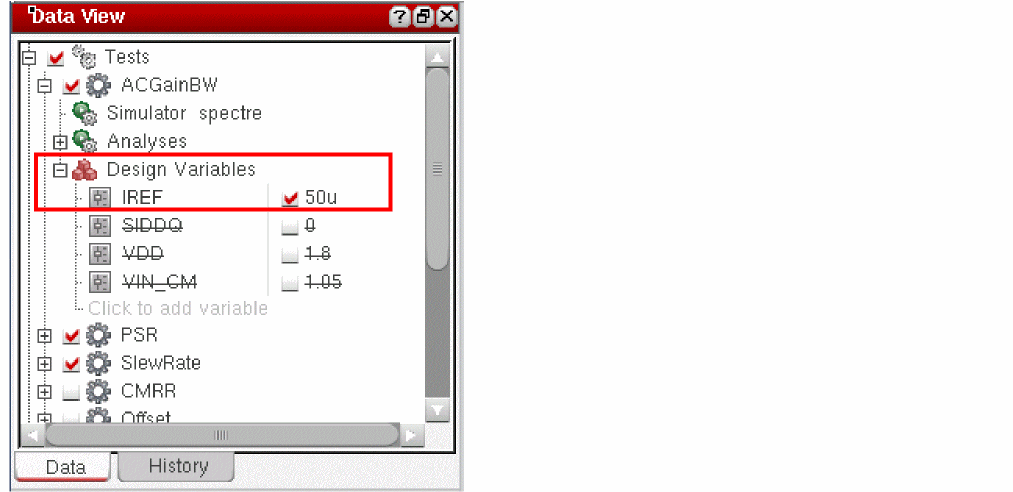

The check box next to the IREF variable in the Design Variables list for the ACGainBW test is selected.
