Technology Setup

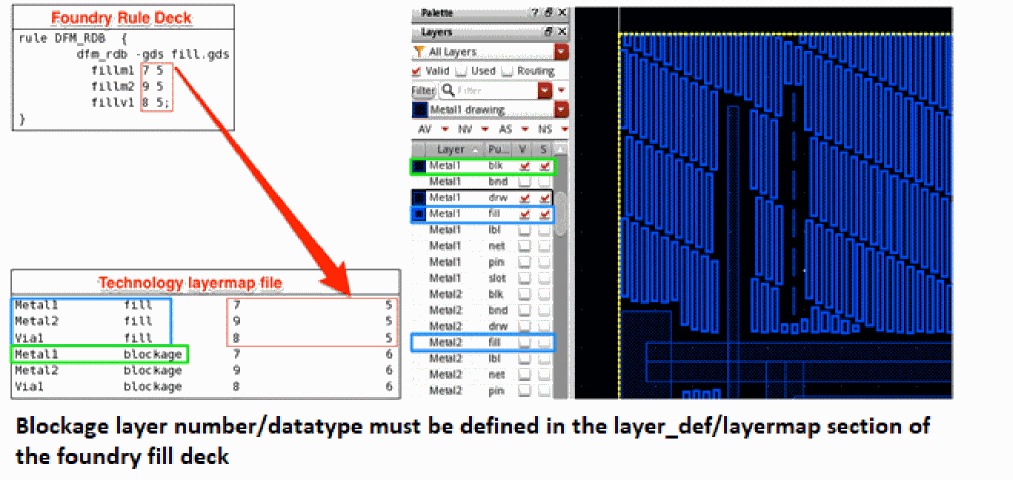

To backport the generated dummy fills into the OA technology layermap file, you must define the mapping between the fill layer and layer-purpose pair:

There must be proper mapping between the generated dummy fills in the foundry rule deck and the Virtuoso technology library. If there is no proper mapping, then the generated dummy fills will not be shown in Virtuoso.
