weAutoTwigTrunkViaDirection

we weAutoTwigTrunkViaDirection cyclic { "twig" | "trunk" }

Description

Selects one of the objects to determine the via direction between the trunk and the twig:

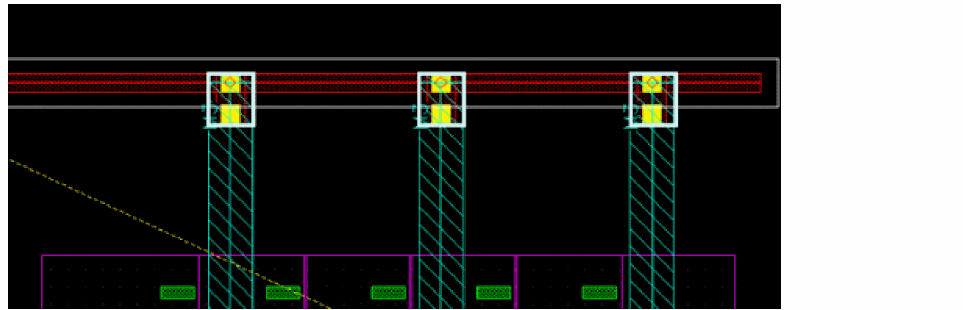

• twig: The via enclosure is in the twig segment direction.

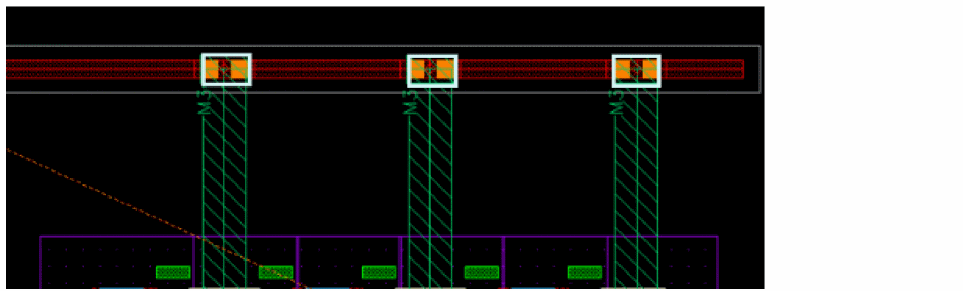

• trunk: The via enclosure is in the trunk segment direction.



The default is twig.

GUI Equivalent

Command	SDR Toolbar – Options
Field	Via Direction

Examples

envGetVal("we" "weAutoTwigTrunkViaDirection")

envSetVal("we" "weAutoTwigTrunkViaDirection" 'cyclic "trunk")

Related Topics

SDR Options Form

SDR Toolbar
