d_cellViewId

Cellview ID of the layout to be used. For a connector, the generator checks its view type and whether the cellview is editable and is a maskLayout.

t_waveguideLayer

Name of the abstract layer or the design intent layer in which you want to draw the connector. This must be a layer with the waveguide function defined in the PDK technology file. It is also used to determine the relevant waveguideDef (cross-section) in the technology file, to generate the needed layers to implement the waveguide.

?rotation n_rotation

Rotation angle in degrees for the bend connector.

The default value is (0,0), which means there is no rotation.

The facet angle 0.0 points to the bottom.

?offset l_offset

list(n_lhs n_rhs)

Offset value for the connector.

The default value is (0,0), which means there is no offset.

?full g_full

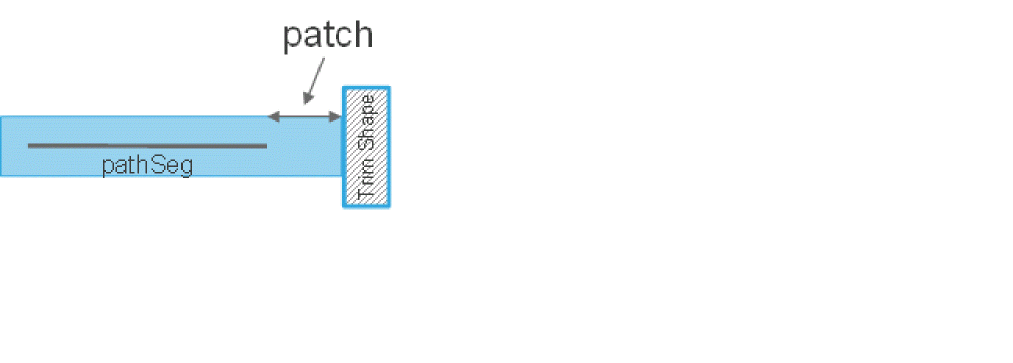

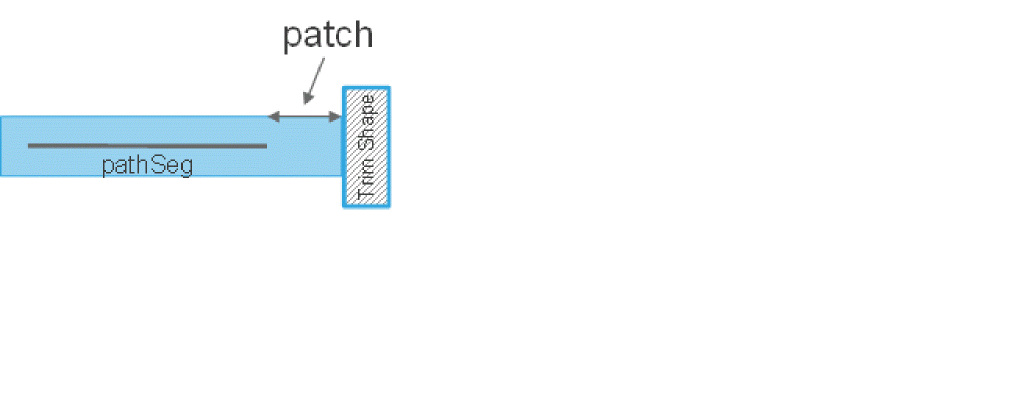

A Boolean when set to t specifies whether a waveguide is created with all its layers from the cross section as defined in the technology file. This is the default.

When set to nil, only the design intent layer t_waveguideLayer is drawn, generating an abstract of the connector.

?startPortName t_PortName

Name of the start port. The default value is "start".

A nil port name results in a connector generated without a port at the start. This may be useful when composing a complex layout with multiple connectors in which ports are not needed in the middle because there is no hierarchical connection point at that location.

?endPortName t_PortName

Name of the end port. The default value is "end".

This may be useful when composing a complex layout with multiple connectors in which ports are not needed in the middle because there is no hierarchical connection point at that location.

?startPortDirection t_Direction

Direction of the start port. The default value is "inputOutput".

?endPortDirection t_Direction

Direction of the end port. The default is "inputOutput".

?width n_width

Width of the waveguide layer. The default value is nil.

?taperStyle s_taperStyle

Style of the tapering.

Valid values are: 'none, 'linear, 'exp and 'parabolic. The default value is 'none.

?startWidth n_width

Width of the taper at the start of the connector. The default value is nil.

?endWidth f_width

Width of the taper at the end of the connector. The default value is nil.

?taperStartClamp f_length

Length of the clamping region at the start of the connector. The default value is nil.

This is the zone where the derived function is changed to align the curve with the facet angle.

See ccCreateConnectorWidthExpressionList.

?taperEndClamp f_length

Length of the clamping region at the end of the connector. The default value is nil.

See ccCreateConnectorWidthExpressionList.

?angle f_angle

Bend angle of the arc. The default value is nil.

?radius f_radius

Radius of the arc. The default value is nil.

?arcPart f_arcPart

Any value between 0.0 and 1.0 indicating the ratio of the circular bending angle to the overall bending angle.

• When the value is 1.0, the connector consists of a single circular arc.
• When the value is 0.0, the connector consists of two clothoids.

?Rmin f_Rmin

Overwrites or specifies the minimum curvature radius. The default value is nil.

If specified, the curve is not drawn unless the ?radius is greater or equal to ?Rmin.

?modeSpec l_l_modeSpec

List of list of arguments to calculate the mode properties (modeProp) for the connector:

list( list(wavelength1 wavelength2…) list(temperature1 temperature2…))

Example:

list(list(1550n) list(27)) )

?modePropOnly l_modePropOnly

Returns a partial connector disembodied property list, without drawing it in the cellview. The default value is nil.

?portPinPurpose t_portPinPurpose

Layer purpose to use when creating pins. The default purpose for pins is "drawing".

?waveguideDefPurpose t_waveguideDefPurpose

Enables changing the waveguideDef purpose and select a different waveguideDef profile from the technology file.

l_dpl

A disembodied property list (DPL) of curve, pins and their angles, and arguments passed to the function. This can be used to easily use the connector in a SKILL script.

A DPL starts with nil and has keys to access different information or values. A connector DPL has nested DPLs. You can access this information in SKILL using the -> operator.

The main keys are:

• connectorName: A string with the name of the connector.
• startPort: A DPL containing the startPort information, such as name, direction, and facet information.
• endPort: A DPL containing the endPort information, such as name, direction, and facet information.
• waveguideLayer: A string with the name of the waveguide layer used by the connector.
• args: A list of all arguments used to generate the connector.

nil

Connector is not created.
