dbCreateCurvedPolygon

dbCreateCurvedPolygon(
d_CellViewId
txl_layerPurpose
l_curvedPoints
)
=> d_curvedPolygonId

Description

(Virtuoso MultiTech Framework) Creates a curved polygon.

Arguments

d_cellViewId	Database ID of a cellview.
txl_layerPurpose	Name, number, or a list of layers or layer-purpose pairs.
l_curvedPoints	list(boundary [l_holes]) List of one boundary and zero or more holes forming a complex closed curve. Each boundary or hole is represented by a dbClosedCurve, which is a list of vertexes. In a vertex, pairs of adjacent vertexes represent edges, which can be straight or circular: A straight edge is indicated by two end points without an arc qualifier on the beginning edge. A circular edge may be indicated by explicitly specifying the center or implicitly specifying the center. The explicit specification requires the center to be on the DBU grid. The implicit specification does not require the center to be on the DBU grid. The points list can be a mix of explicit center-based or implicit angle-based specifications. Each element in the list describes a vertex on the curved shape.
	L_curvedPoints := (elem)* elem := {<x:float> <y:float> ([("arc" | "arcByCenter") ("cw" | "ccw")] | ["arcByAngle" <angle:float>])} Here, keywords for explicit specification are "arc" and "arcByCenter" followed by "cw"(clockwise), or "ccw" (counter clockwise), to specify the direction. Keywords for implicit specification, where you do not define the center explicitly, are "arcCentralAngle" and "arcByAngle". In implicit specification, to specify a clockwise arc, specify a negative value for the angle specification.

Value Returned

d_curvedPolygonId

Database ID of the curved polygon that is created.

Example

cp1 = list(list(0 0) list(200 0) list(200 100 "arc" "ccw") list(200 200) list(0 200))

dbCreateCurvedPolygon(cv list("DIE_PAD" "drawing") cp1)

A curved polygon is created based on the specified list of points and layer-purpose as "DIE_PAD" "drawing".

Additional Information

Creating Arcs

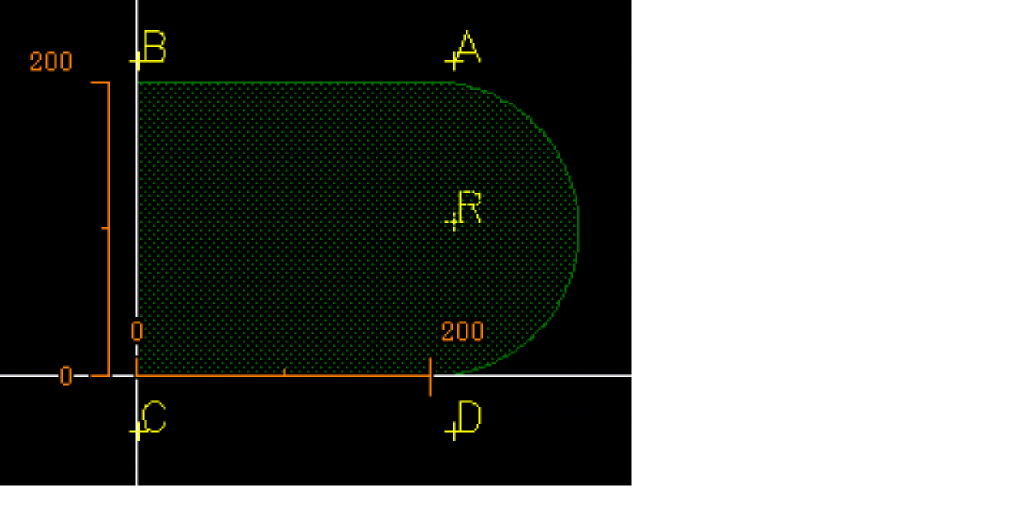

Consider a curved polygon with three straight edges and one circular edge:

There are three ways for creating this polygon:

let( (cv cp0 cp1a cp1b cp2a cp2b cp3 polygon)

   cv = geGetEditCellView()

   mapcar('dbDeleteObject cv~>shapes)

   cp0 = '(

           (200 200)              ;A

           (0 200)                ;B

           (0 0)                  ;C

           (200 0)                ;D

           (200 100 "arc" "ccw")  ;R

          )

   cp1a = '(

            (0 0)                  ;C

            (200 0)                ;D

            (200 100 "arc" "ccw")  ;R

            (200 200)              ;A

            (0 200)                ;B

          )

   cp1b = '(

            (0 0)                          ;C

            (200 0)                        ;D

            (200 100 "arcByCenter" "ccw")  ;R

            (200 200)                      ;A

            (0 200)                        ;B

          )

   cp2a = '(

            (0 0)                          ;C

            (200 0 "arcCentralAngle" 180)  ;D

            (200 200)                      ;A

            (0 200)                        ;B

          )

   cp2b = '(

            (0 0)                          ;C

            (200 0 "arcByAngle" 180)       ;D

            (200 200)                      ;A

            (0 200)                        ;B

          )

    cp3 = '(

            (0 0)                          ;C

            (200 0)                        ;D

            ("arcCentralAngle" 180)

            (200 200)                      ;A

            (0 200)                        ;B

          )

   foreach(points list(cp0 cp1a cp1b cp2a cp2b cp3)

      polygon = dbCreateCurvedPolygon(cv '("BD4" "drawing") points)

      assert(dbGetCurvedPolygonPoints(polygon) == cp0)

   )

  )

Explicit arcs:

• cp0, cp1 and cp2 show examples of explicit arcs.
• The center point R is explicitly specified.
• The keywords "arc" and "arcByCenter" can be used interchangeably.
• Explicit arcs are useful for circles around a known center point.

Implicit arcs:

• cp2a, cp2b and cp3 show examples of implicit arcs.
• No radius is specified, only points on the actual boundary are listed.
• Implicit arcs are useful when the boundary points are known.
• The keywords "arcCentralAngle" and "arcByAngle" can be used interchangeably.

Regardless of how the curved polygon is created, dbGetCurvedPolygonPoints always returns the edges in cp0.

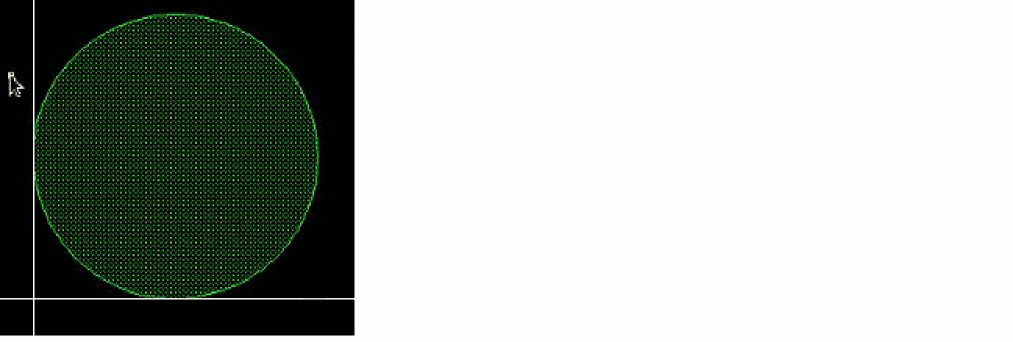

Creating a circle

To create a circle:

• Create a counter clockwise circular edge from (0 100) to (200 100) using (100 100) as the center.
• Create a counter clockwise circular edge from (200 100) to (0 100) using (100 100) as the center.

     dbCreateCurvedPolygon cvId list("SURFACE" "drawing")

      '(

        (0   100)

        (100 100 "arc" "ccw")

        (200 100)

        (100 100 "arc" "ccw")

       )

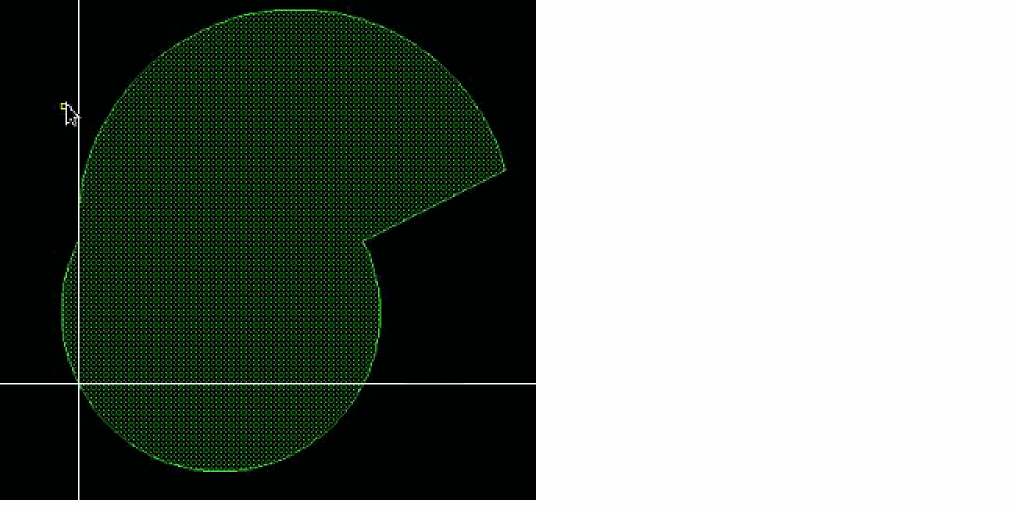

Creating a beak

To create a beak:

• Create a counter clockwise circular edge from (0 100) to (200 100) using (100 50) as the arc center
• Create a straight edge from (200 100) to (300 150)
• Create a counter clockwise circular edge from (300 150) to (0 100) using (50 100) as the arc center

 dbCreateCurvedPolygon cv '("BD4" "drawing")

   '(

      (0   100)

      (100 50 "arc" "ccw")

      (200 100)

      (300 150)

      (50  100 "arc" "ccw")

    )

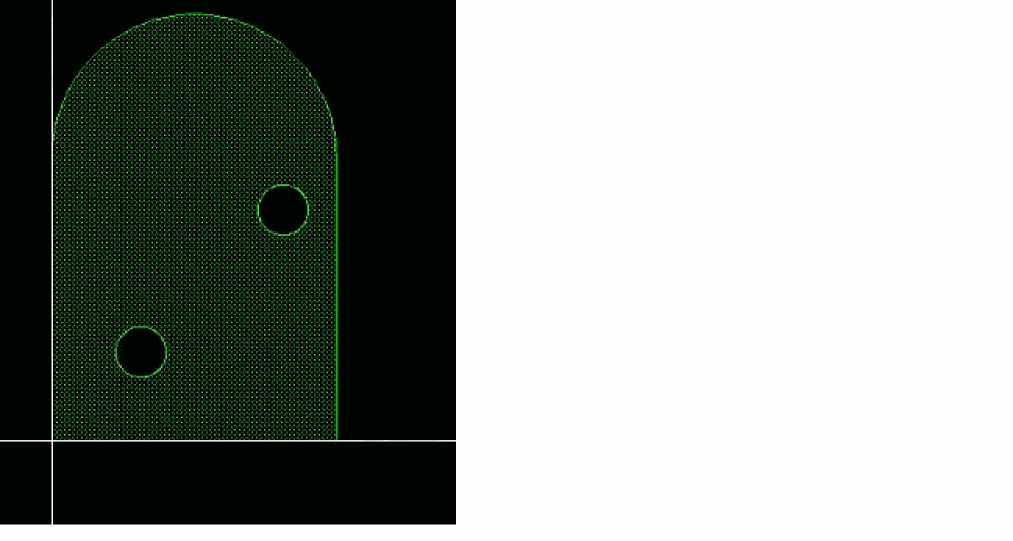

Creating a tombstone with eyes

To create a tombstone with eyes, you need to create the following:

1. Create a solid boundary.

a. Create a straight edge from (0 0) to (200 0).

b. Create a straight edge from (200 0) to (200 200).

c. Create a counter clockwise circular arc from (200 200) to (0 200) using (100 200) as the arc center.

d. Create a straight edge (0 200) to (0 0).

solid = '(

              (0   0)

              (200 0)

              (200 200)

              (100 200 "arc" "ccw")

              (0   200)

            )

1. Create the first hole (hole1).

a. Create a counter clockwise circular arc from (50 50) to (75 75). The center is computed to create a subtended angle of 180 degree.

b. Create a counter clockwise circular arc from (75 75) to (50 50). The center is computed to create a subtended angle of 180 degree.

hole1 = '(

              (50 50 "arcCentralAngle" 180)

              (75 75 "arcCentralAngle" 180)

)

1. Create the second hole (hole2)

a. Create a counter clockwise circular arc from (150 150) to (175 175). The center is computed to create a subtended angle of 180 degrees.

b. Create a counter clockwise circular arc from (175 175) to (150 150). The center is computed to create a subtended angle of 180 degrees.

 hole2 = '(

              (150 150 "arcCentralAngle" 180)

              (175 175 "arcCentralAngle" 180)

             )

1. Create the polygon itself using all the three curves.


   dbCreateCurvedPolygon(cv '("BD4" "drawing") list(solid list(hole1 hole2)))
