abeLayerInside

abeLayerInside(
o_abeLayer1
o_abeLayer2
o_abeOutputLayer
[ ?queue g_queue ]
)
=> t / nil

Description

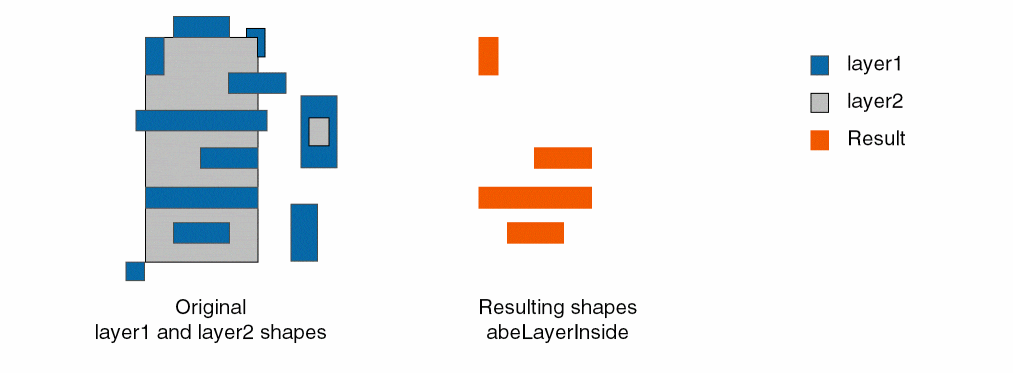

Adds ABE layer1 shapes that are completely inside an ABE layer2 shape to the ABE output layer. Coincident edges are considered inside. Partially overlapping shapes are excluded.

Set the environment variable abeFixShapePartitioning to enable the proper functioning of non-rectangular shapes.

Arguments

o_abeLayer1	ID of ABE layer1.
o_abeLayer2	ID of ABE layer2.
o_abeOutputLayer	ID of the ABE output layer.
?queue g_queue	Adds the function to the queue, rather than running it immediately. Functions in the queue are not run until abeRunQueue is issued.

Values Returned

t	The function was run or queued successfully.
nil	The function was not successful because ABE is not initialized or there was an argument error.

Examples

Adds a1 ABE layer shapes that are completely inside an a2 ABE layer shape to the result ABE layer.

abeLayerInside( a1 a2 result )
