enterSegment

enterSegment(
[ ?prompts l_promptList ]
[ ?points l_pointList ]
[ ?form s_form ]
[ ?addPointProc t_addProcName ]
[ ?delPointProc t_delProcName ]
[ ?initProc t_initProcName ]
[ ?doneProc t_doneProcName ]
[ ?formProc t_formProcName ]
[ ?dontDraw g_dontDraw ]
[ ?alwaysMap g_alwaysMap ]
[ ?acceptString g_acceptString ]
[ ?acceptNumber g_acceptNumber ]
[ ?noInfix g_noInfix ]
[ ?cmdName t_cmdName ]
[ ?cursor x_cursor ]
)
=> l_point_list / nil

Description

Lets you enter a segment into the current window.

The function accepts two points. After the first point is digitized, a rubberbanding line appears between the first point and the cursor’s current location.

Arguments

?prompts l_promptList



List of prompt strings to be displayed. Only the first two strings are used.

?points l_pointList



List of no more than two points. If both points are supplied, they are adjusted and returned with no further interaction. If one point is supplied, it is adjusted and displayed as if the user had entered it. After the first point is entered a rubberbanding line appears between the point and the current cursor location. When the second point is entered, the function terminates and returns the list of points entered. The segment obeys the current snap mode and snap shape rule when in Graphics Editor windows.

?form s_form

Options form created with hiCreateOptionsForm. This form is displayed when you call hiToggleEnterForm. It contains options relevant to the enterfunction and its caller.

?addPointProc t_addProcName



Name of the SKILL function to be called when a point is entered.

?delPointProc t_delProcName



Name of the SKILL function to be called when a point is deleted.

?initProc t_initProcName



Name of the SKILL function to be called immediately after the enterfunction is started and before any data entry.

?doneProc t_doneProcName



Name of the SKILL function to be called when the enterfunction is terminated.

?formProc t_formProcName



Name of the SKILL function to be called when the options form is displayed.

?dontDraw g_dontDraw



Determines whether or not to draw rubber band lines.

?alwaysMap g_alwaysMap



Detemines whether or not to immediately display the options form.

?acceptString g_acceptString



Determines whether or not to accept string input without terminating the enterfunction.

?acceptNumber g_acceptNumber



Determines whether or not to accept numeric input without terminating the enterfunction.

?noInfix g_noInfix



Determines whether or not to disable infix mode.

?cmdName t_cmdName



Name you associate with the enterfunction. If the command name is set, it can be accessed with hiGetCurrentCmd.

?cursor x_cursor

An integer argument that will default to an appropriate cursor. For example, hicArrowRectangle for enterBox and hicArrowArc for enterArc. For more information on all available cursors see hiSetCursor.

Values Returned

l_point_list

A list containing the coordinates for a segment.

nil

A nil list is returned.

Retrieve data through the callback procedure t_doneProcName instead of using the return value for this enterfunction.

Examples

Displays the prompt Enter the second point on the prompt line.

procedure( segDone( w done pts )
   if( done then
      printf("Segment entered was %L.\n" pts)
   else
      println("Segment entry aborted.")
   )
)
procedure( myEnterSegment( )
   enterSegment( ?prompts
      list( "Enter the first point."
      "Enter the second point." )
      ?doneProc "segDone"
   )
)

Sets infix mode on and bind the s key to the procedure myEnterSegment. Type the s key in a Schematics window at location p1. Because of infix mode, p1 is accepted as the first point for the enterSegment call. The rubberbanding line immediately appears between p1 and the cursor location.

window(1)->infixOn = t
hiSetBindKey("Schematics" "<Key>s" "myEnterSegment( )")

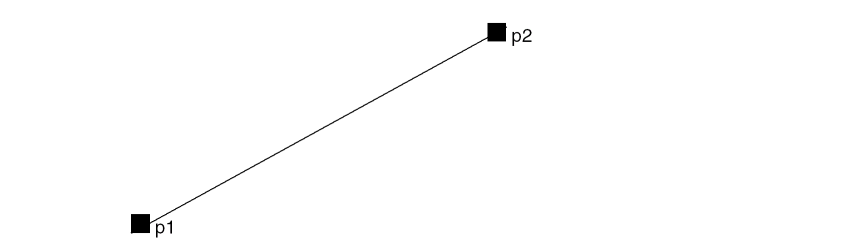

Enter point p2. doneProc prints out the points entered:

Segment entered was ( p1 p2 ).

The enterfunction returns the list of points:

( p1 p2 )
