Finding and Displaying Nets in the Navigator

You can select nets from the Navigator assistant and have them displayed in the heat map. To do this:

1. Open the Navigator assistant in Virtuoso by choosing Windows – Assistant – Navigator.
2. Click and select the nets from the Navigator assistant.

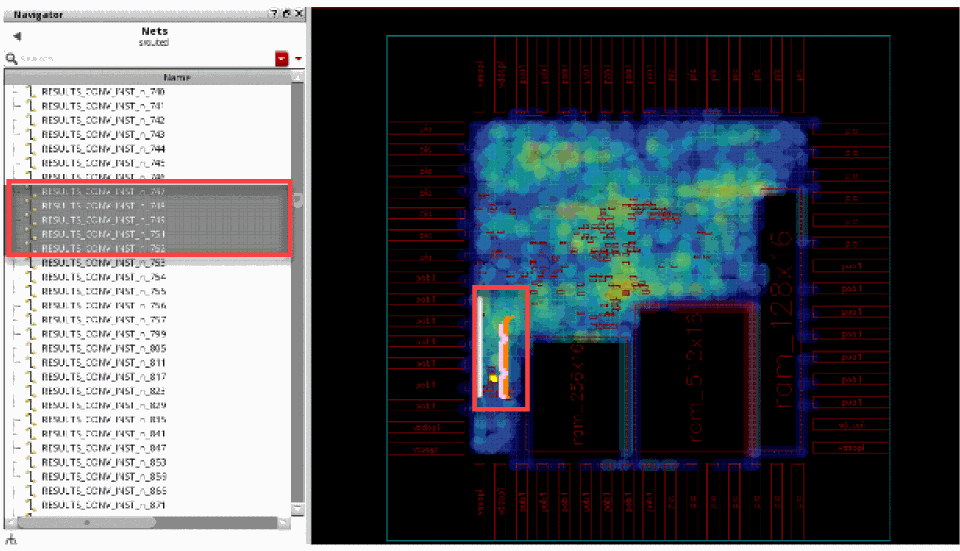

   The following figure shows the selected nets in the Navigator assistant and how they are displayed together in the heat map.
